1.2-inch Light Duty Ball Transfer Unit | 70-85kg Load Capacity

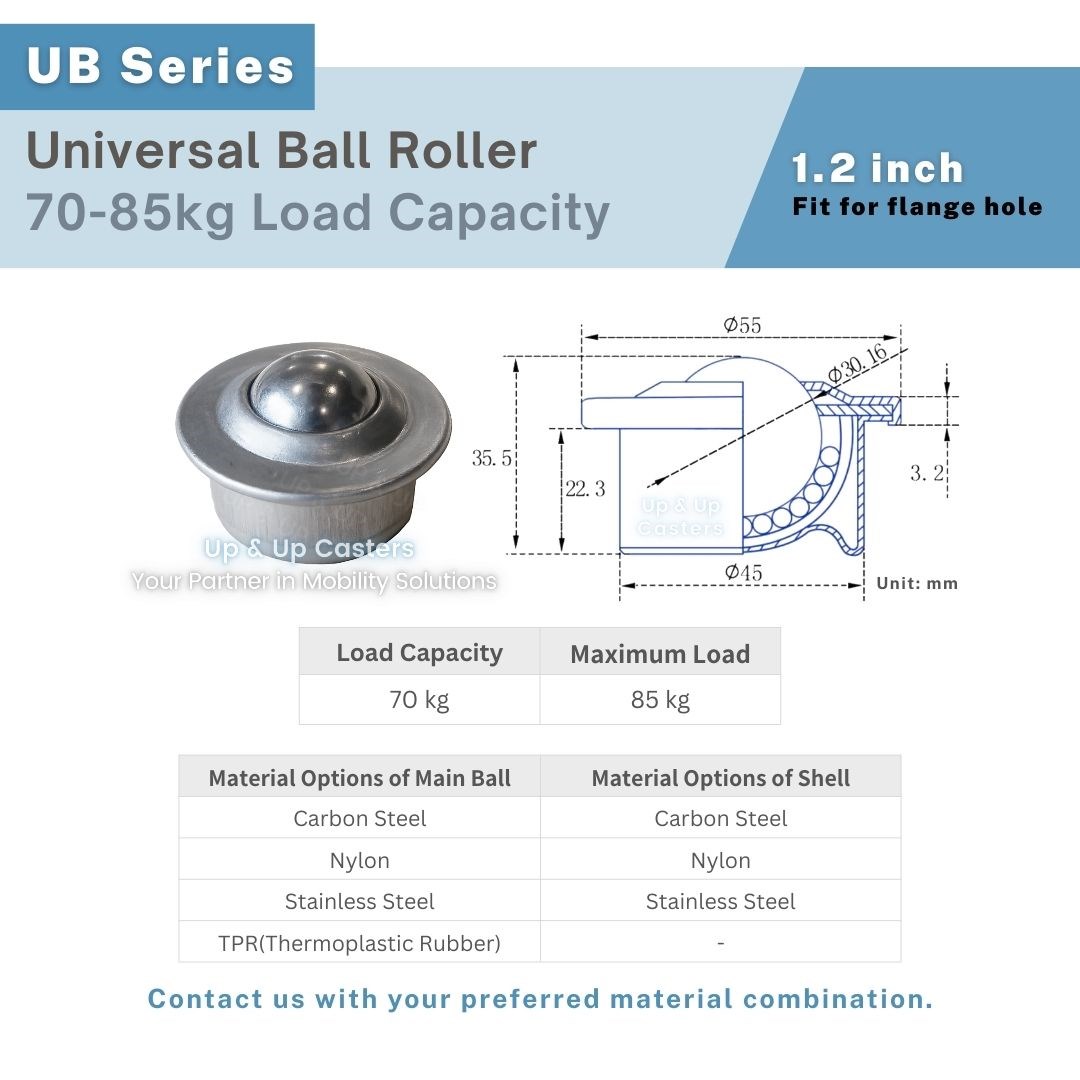

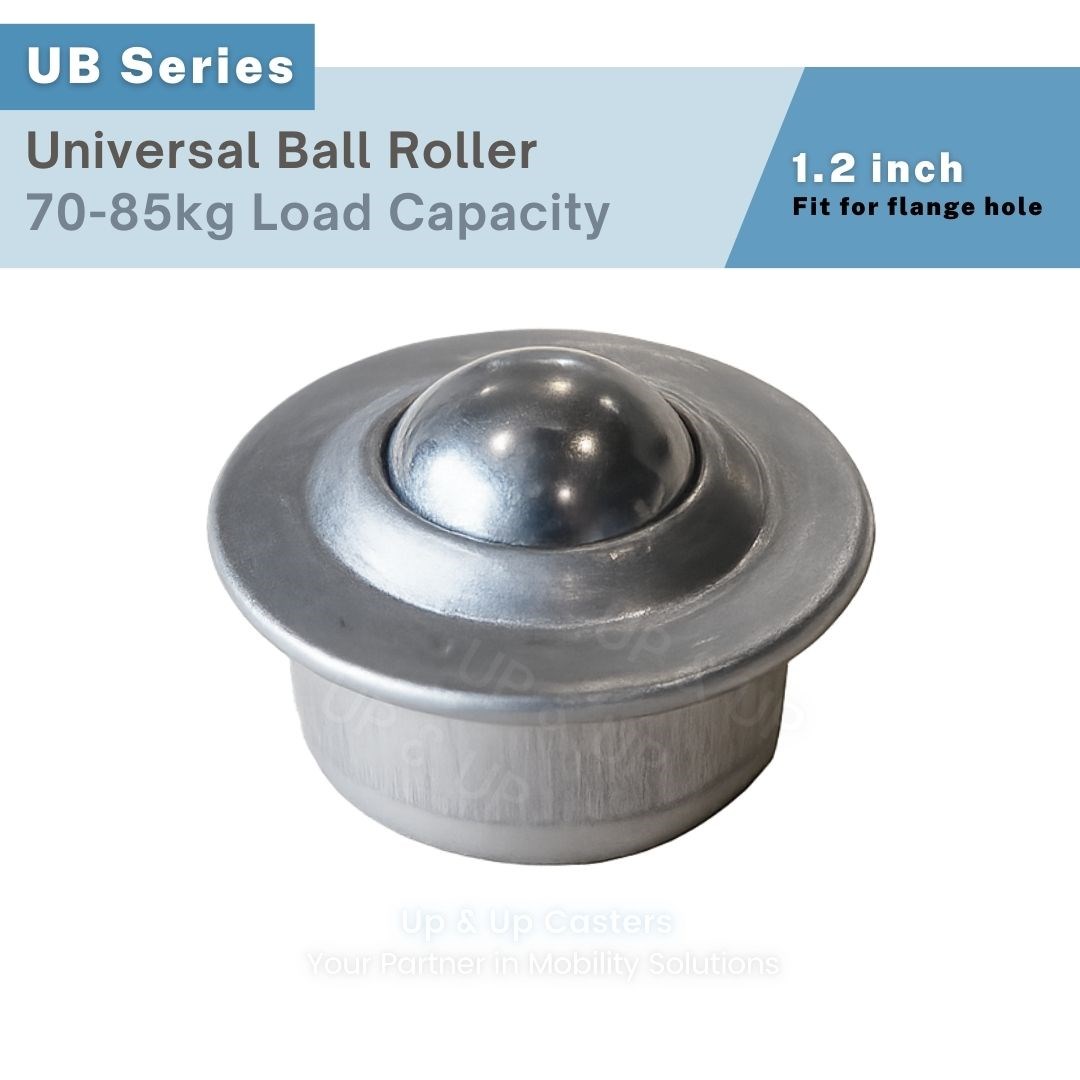

UB Series - Light Duty Load Universal Ball Roller (1.2 inch Main Ball, 85kg Load Capacity)

The UB Series Universal Ball Roller from UP&UP Casters is a robust and versatile solution for medium to heavy-duty applications, engineered for smooth and precise movement of equipment and materials.

Featuring a 1.2-inch (30mm) main ball diameter, this model is designed for flange hole mounting, ensuring a secure and stable installation.

The shell is available in durable carbon steel or stainless steel for superior corrosion resistance, while the main ball can be customized with carbon steel, nylon, or stainless steel to meet specific operational and environmental demands.

This ball roller is ideal for conveyor systems, transfer tables, and custom machinery that requires significant load-bearing capability and long-lasting performance.

Product Features

• 1.2-inch (30mm) main ball diameter for heavy-duty applications.
• 70 kg standard load capacity with a maximum load of 85 kg.
• Durable shell construction in carbon steel or optional stainless steel.
• Interchangeable main ball materials (carbon steel, nylon, or stainless steel) for different applications and environments.
• Easy flange hole installation for secure mounting.
• Customizable for corrosion resistance or specific load requirements.

Applications

• Heavy-duty conveyor systems and transfer tables
• Industrial assembly and sorting machinery
• Material handling and equipment positioning
• OEM/ODM custom mechanical designs
• Movement systems for large furniture or fixtures

Specifications
