2.5 Inch Heavy Duty Ball Transfer Unit | 1200kg Load Capacity

UB Series - Heavy Duty Load Universal Ball Roller (0.3 inch Main Ball, 15kg Load Capacity)

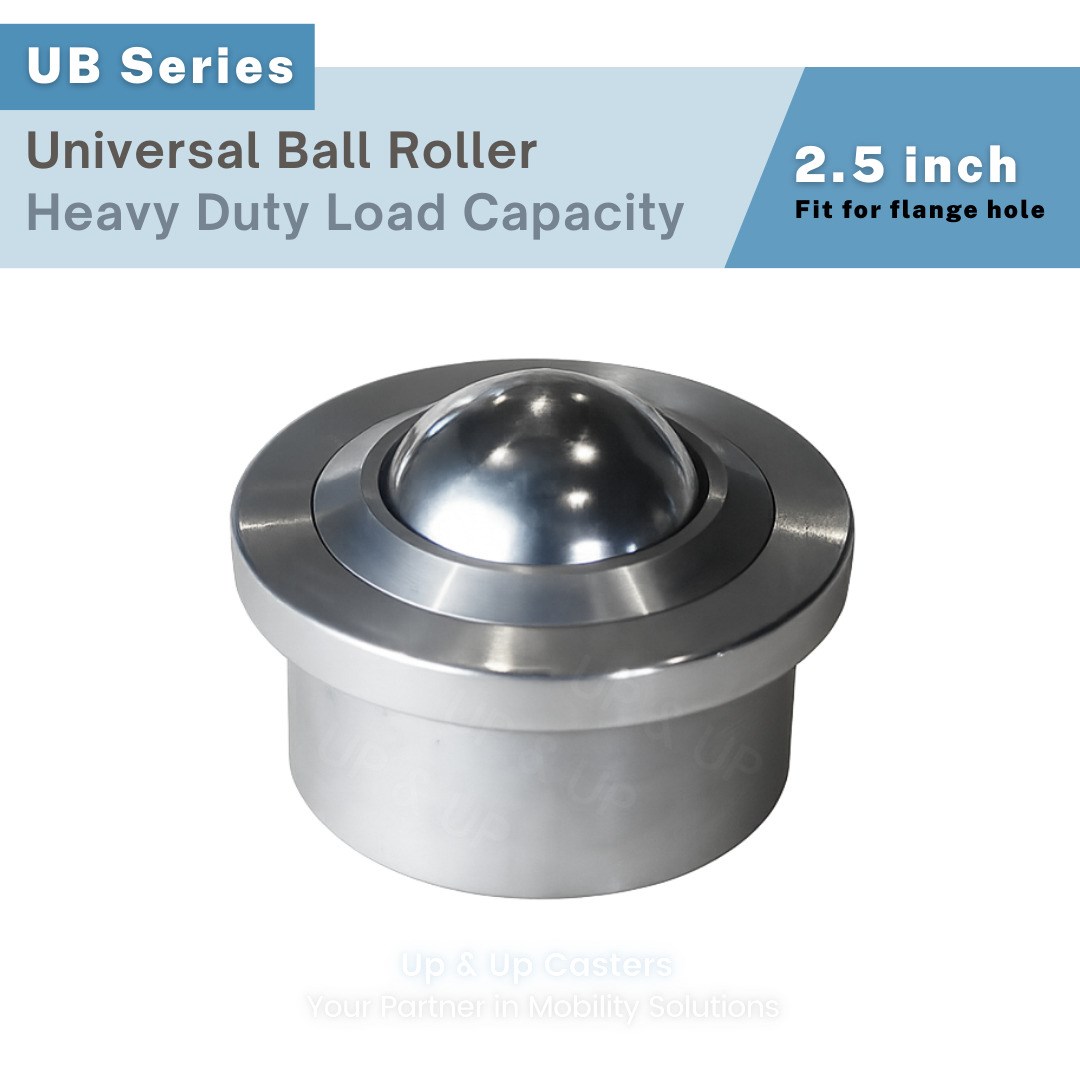

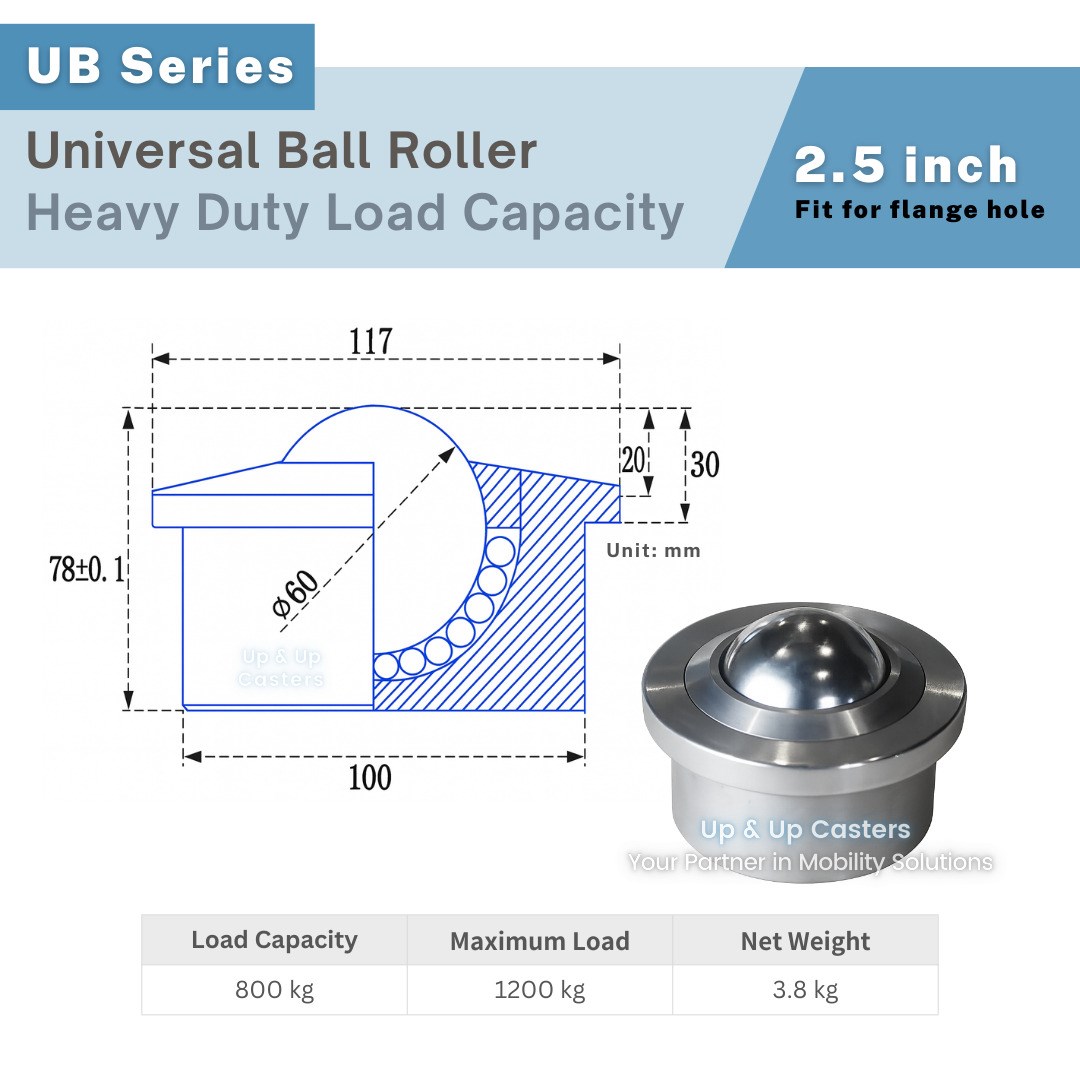

The UB Series Universal Ball Roller from UP & UP Casters features a 2.5-inch (Ø60 mm) precision steel main ball, designed for smooth, omnidirectional movement under heavy loads.
With a load capacity of 800 kg and a maximum load of 1200 kg, this high-strength ball roller is ideal for demanding material handling and transfer applications.
The housing is made of durable carbon steel, with an optional stainless steel version for enhanced corrosion resistance.
The main ball is standard carbon steel but can be customized in nylon for quieter operation or stainless steel for harsh environments.
A higher load capacity model is available for even more demanding industrial requirements.

Product Features

• 2.5-inch precision main ball diameter for accurate handling
• Housing: Carbon steel (optional stainless steel)
• Main ball: Carbon steel (optional nylon or stainless steel)
• Load capacity: 800 kg (max 1200 kg)
• Smooth 360° omnidirectional movement

Applications

• Heavy-duty conveyor and transfer tables
• Large-scale assembly and packaging lines
• Airport baggage handling systems
• Industrial equipment positioning
• High-load material handling platforms

Specifications
