Flange Mount Ball Roller 0.3 inch – Heavy Duty 15kg Load

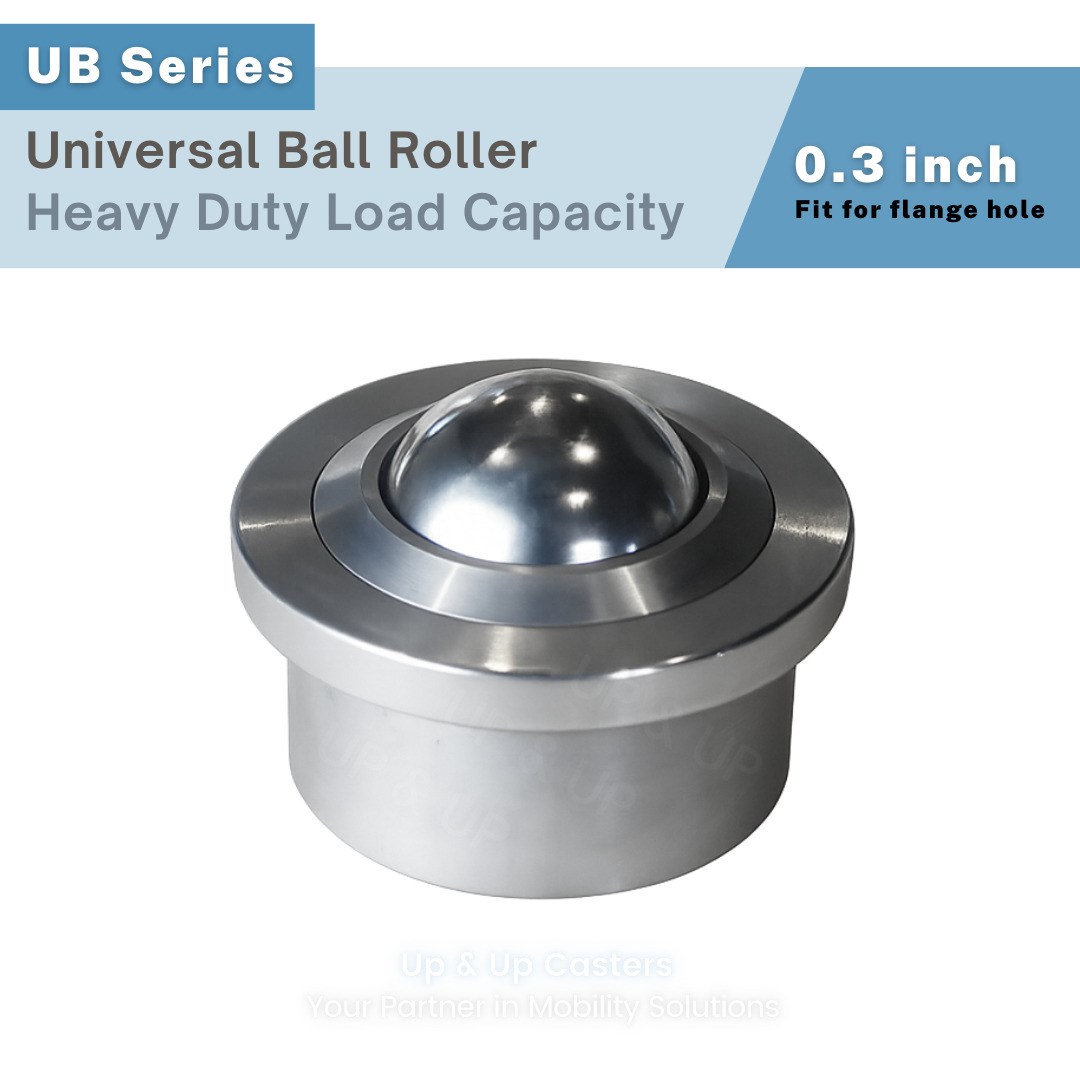

UB Series - Heavy Duty Load Universal Ball Roller (0.3 inch Main Ball, 15kg Load Capacity)

The UB Series Universal Ball Roller from UP & UP Casters features a 0.3-inch precision steel main ball for smooth, omnidirectional movement in heavy-duty applications.

With a load capacity of 8 kg (max 15 kg) and a lightweight design of only 8 g, it is ideal for conveyor tables, assembly lines, and transfer systems.

The housing is made of durable carbon steel, with an option to upgrade to stainless steel for enhanced corrosion resistance.

The main ball is standard carbon steel but can be customized in nylon for noise reduction or stainless steel for improved durability in harsh environments.

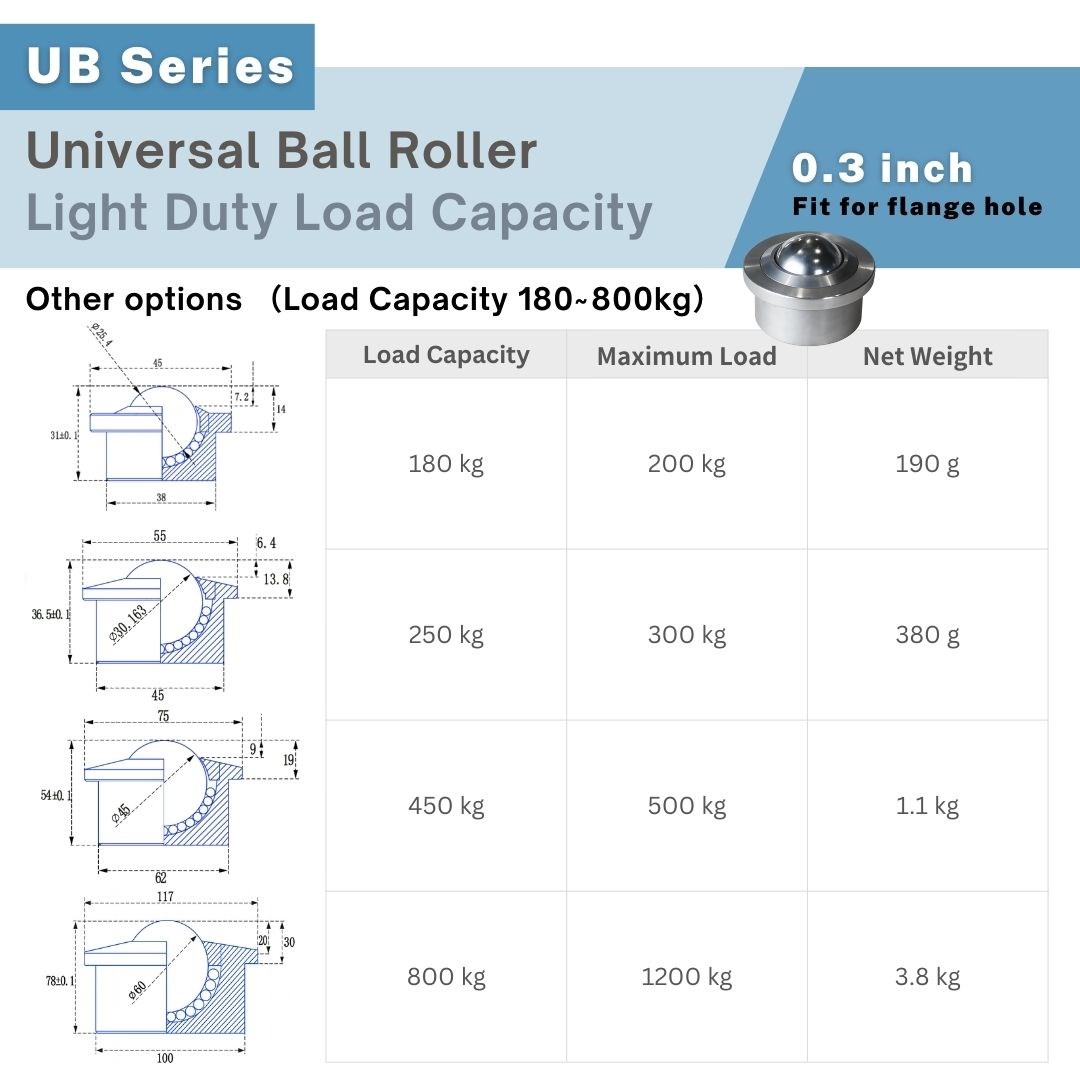

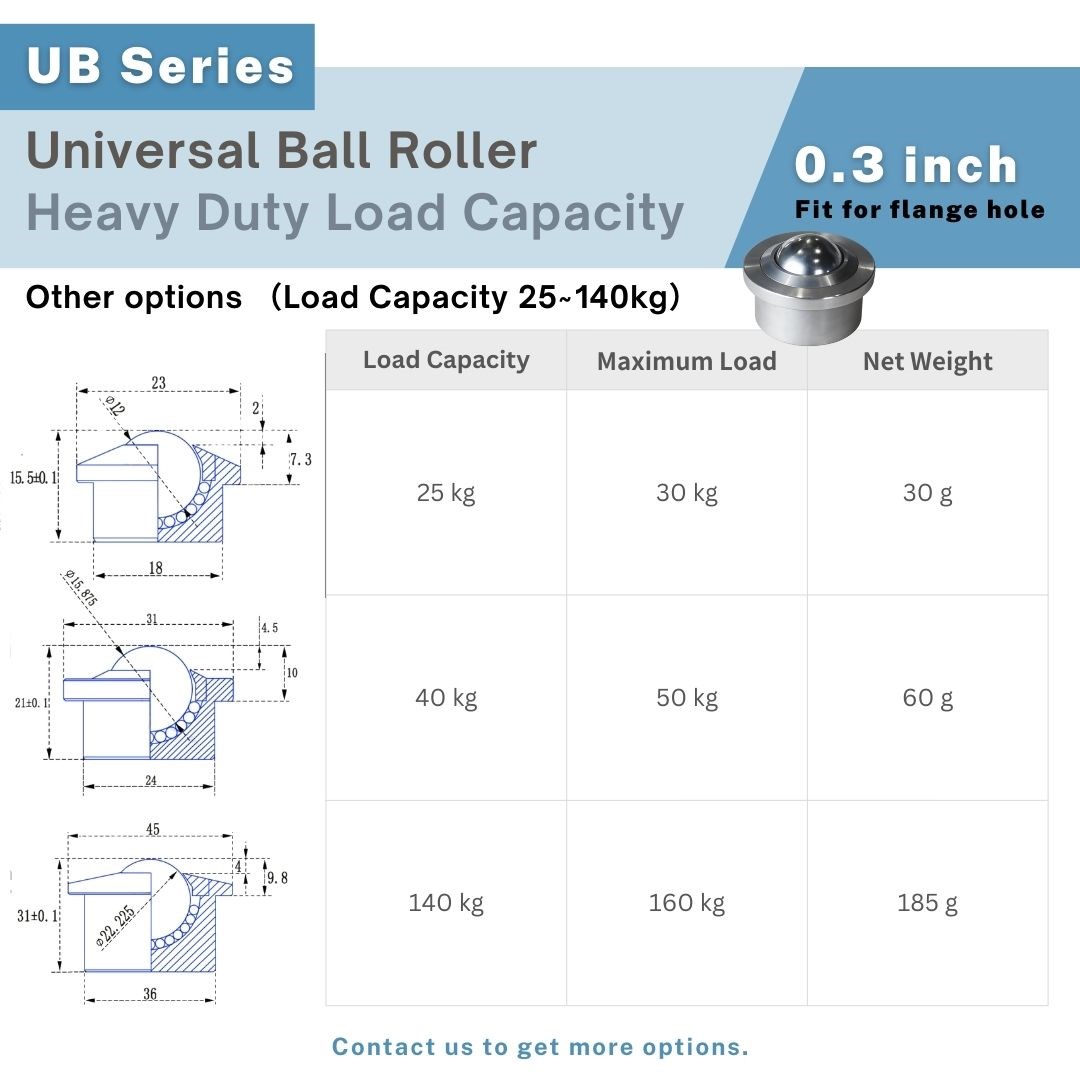

A higher load capacity model is also available for more demanding applications.

Product Features

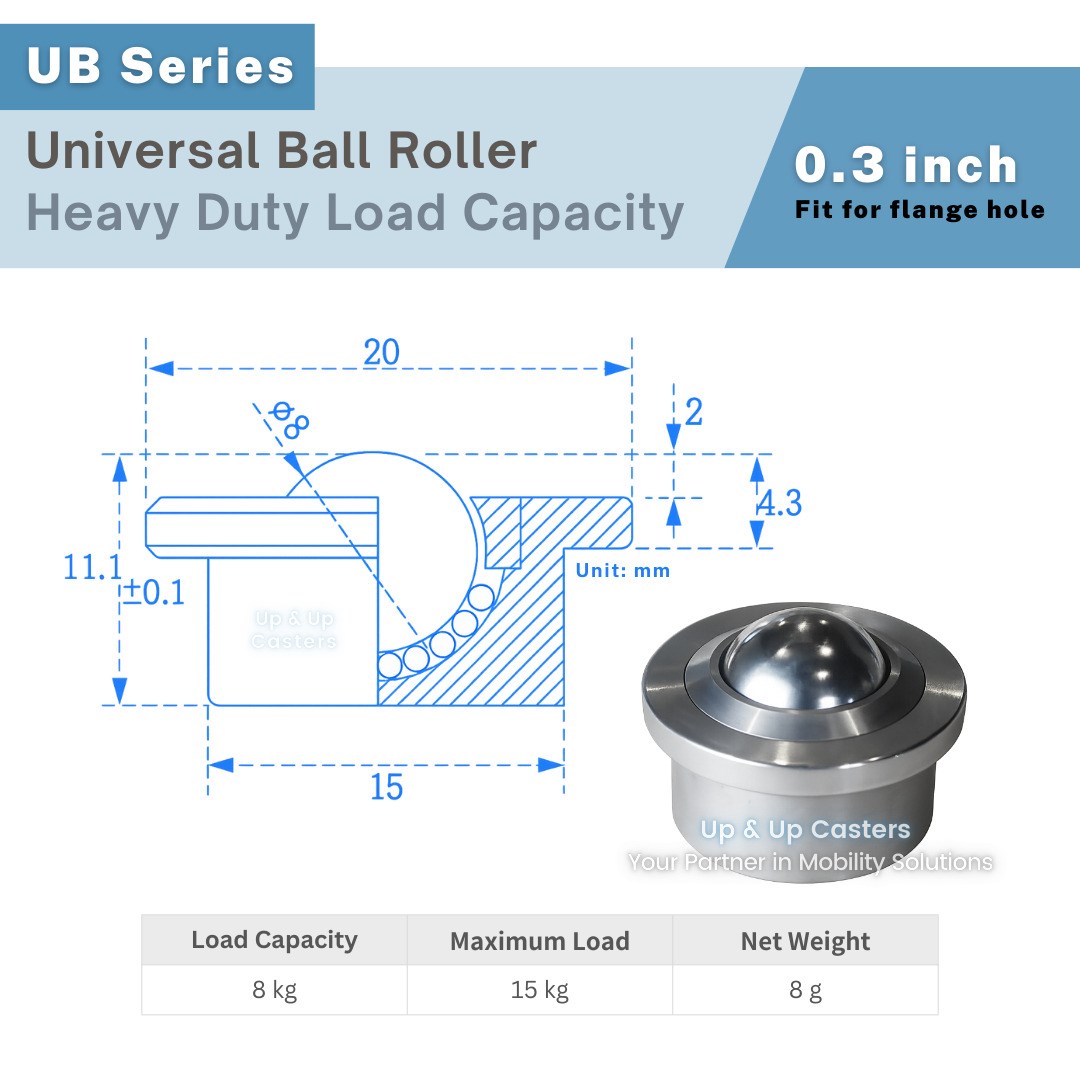

• 0.3-inch main ball diameter for precise handling
• Housing: Carbon steel (optional stainless steel)
• Main ball: Carbon steel (optional nylon or stainless steel)
• Load capacity: 8 kg (max 15 kg)
• Smooth omnidirectional operation

Applications

• Conveyor and transfer tables
• Packaging and assembly lines
• Airport baggage handling systems
• Machinery and equipment positioning
• Industrial material handling platforms

Specifications
