Metal Threaded Stem Ball Transfer Units – Carbon Steel / Stainless

▶︎ Threaded stem design for secure mounting
▶︎ Customizable main ball and shell materials (carbon steel, nylon, stainless steel, TPR)
▶︎ Available in multiple sizes with rated loads from 5 kg to 550 kg
▶︎ OEM/ODM dimension customization available
▶︎ Suitable for various industrial transfer and positioning applications

分享到

UB Series - Universal Ball Roller with Threaded Stem (Custom Material Options)

The UB Series Universal Ball Roller by UP & UP Casters is engineered for versatile load transfer applications, featuring a threaded stem design for secure installation and customizable material options for both the main ball and the shell.

Available in a wide range of sizes and load capacities, this series supports OEM/ODM customization to meet your specific operational and environmental requirements.

Its high-precision construction ensures smooth multi-directional movement, making it suitable for industrial, logistics, and automation systems.

Product Features

  • High-load capacity with precision ball transfer design
  • Threaded stem for firm and easy installation
  • Multi-material options for optimal performance in different environments
  • Smooth and low-friction omnidirectional movement
  • OEM/ODM customization for size and materials

Applications

  • Conveyor transfer tables and assembly lines
  • Cargo handling systems in warehouses and airports
  • Positioning devices in manufacturing plants
  • Furniture and equipment requiring multi-directional mobility
  • Automation and robotics platforms
Specifications

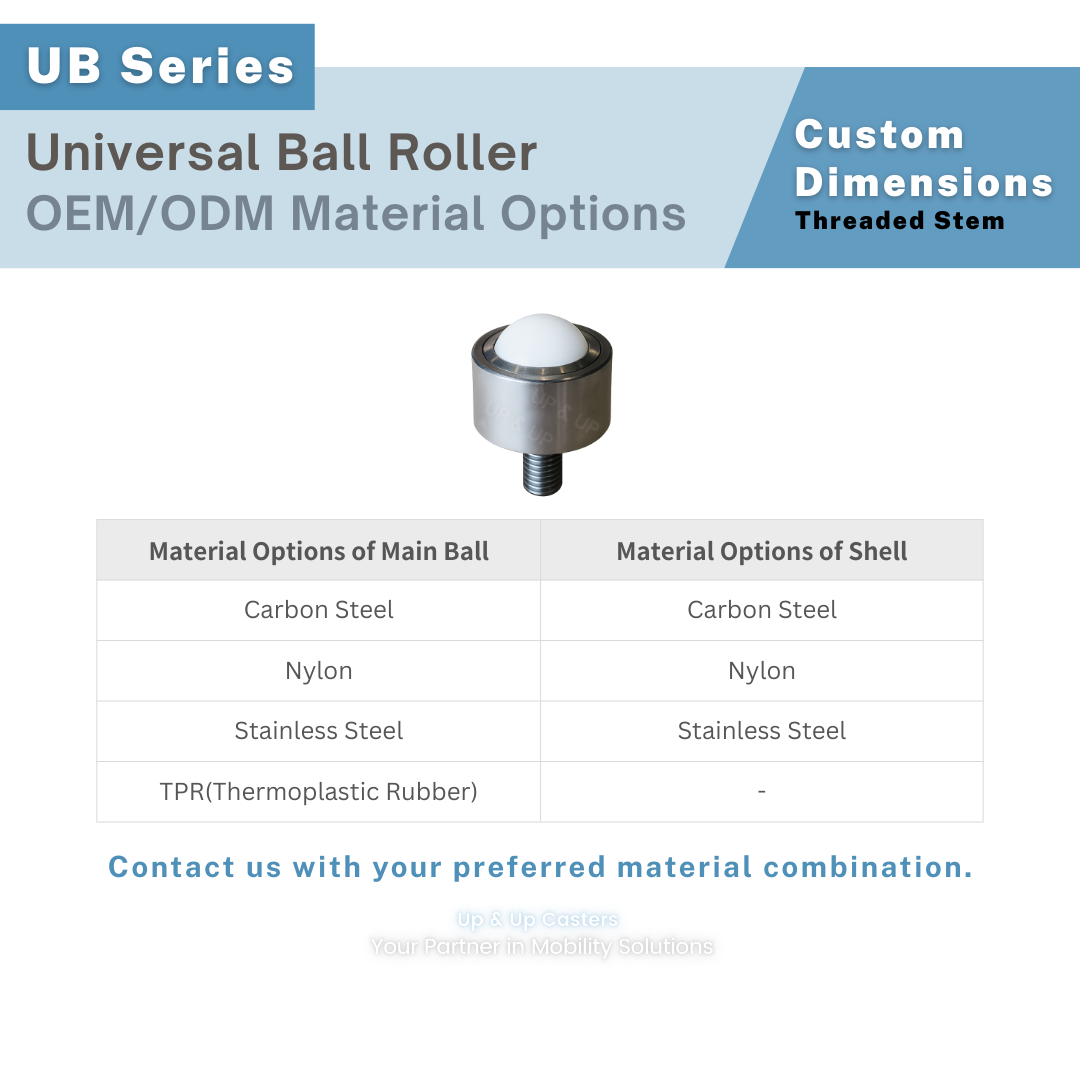

Material Options of Main Ball Material Options of Shell
Carbon Steel Carbon Steel
Nylon Nylon
Stainless Steel Stainless Steel
TPR (Thermoplastic Rubber) -

＊Available in cylindrical design for flange hole installation, also in threaded stem design.

Metal threaded stem universal ball roller with carbon steel housing, nylon ball UP&UP Casters

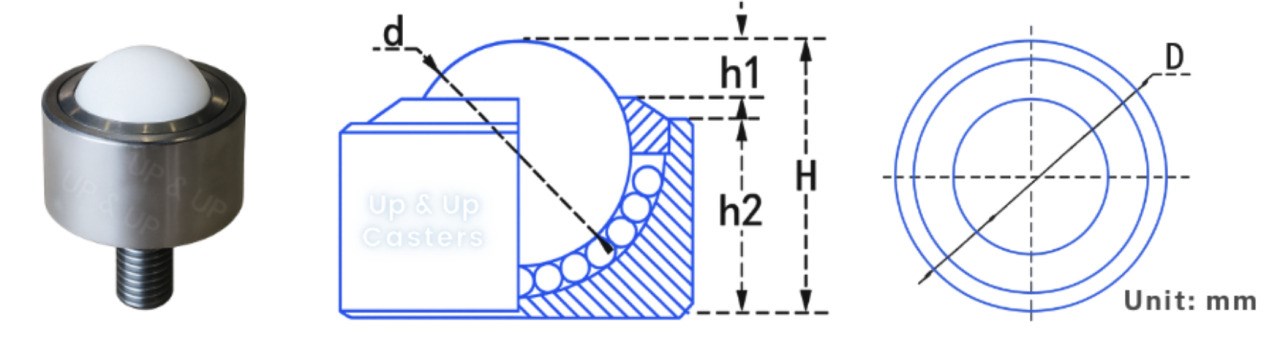

Code d D H h1 h2 Rated Load Max Load Net Wt.
1501 8 12 10.3±0.1 2.3 8 5 Kg 8 Kg 6 g
1502 10 16 12.5±0.1 2.5 8.5 15 Kg 20 Kg 28 g
1503 12 18 15.5±0.1 2 14 25 Kg 30 Kg 35 g
1504 15.875 24 20±0.1 4 20 40 Kg 45 Kg 50 g
1505 22.2 36 31±0.1 6 23 80 Kg 100 Kg 190 g
1506 25.4 37 32±0.15 6.5 24 120 Kg 150 Kg 250 g
1507 30.16 45 38±0.15 8 27 180 Kg 200 Kg 340 g
1508 38.1 55 48±0.2 9.5 33.5 250 Kg 300 Kg 560 g
1509 45 62 53.4±0.2 11 37.6 400 Kg 450 Kg 900 g
1510 60 100 77.5±0.2 20 47.5 550 Kg 600 Kg 2.1 Kg

Universal ball roller threaded stem type, carbon steel and stainless steel material options UP&UP Casters

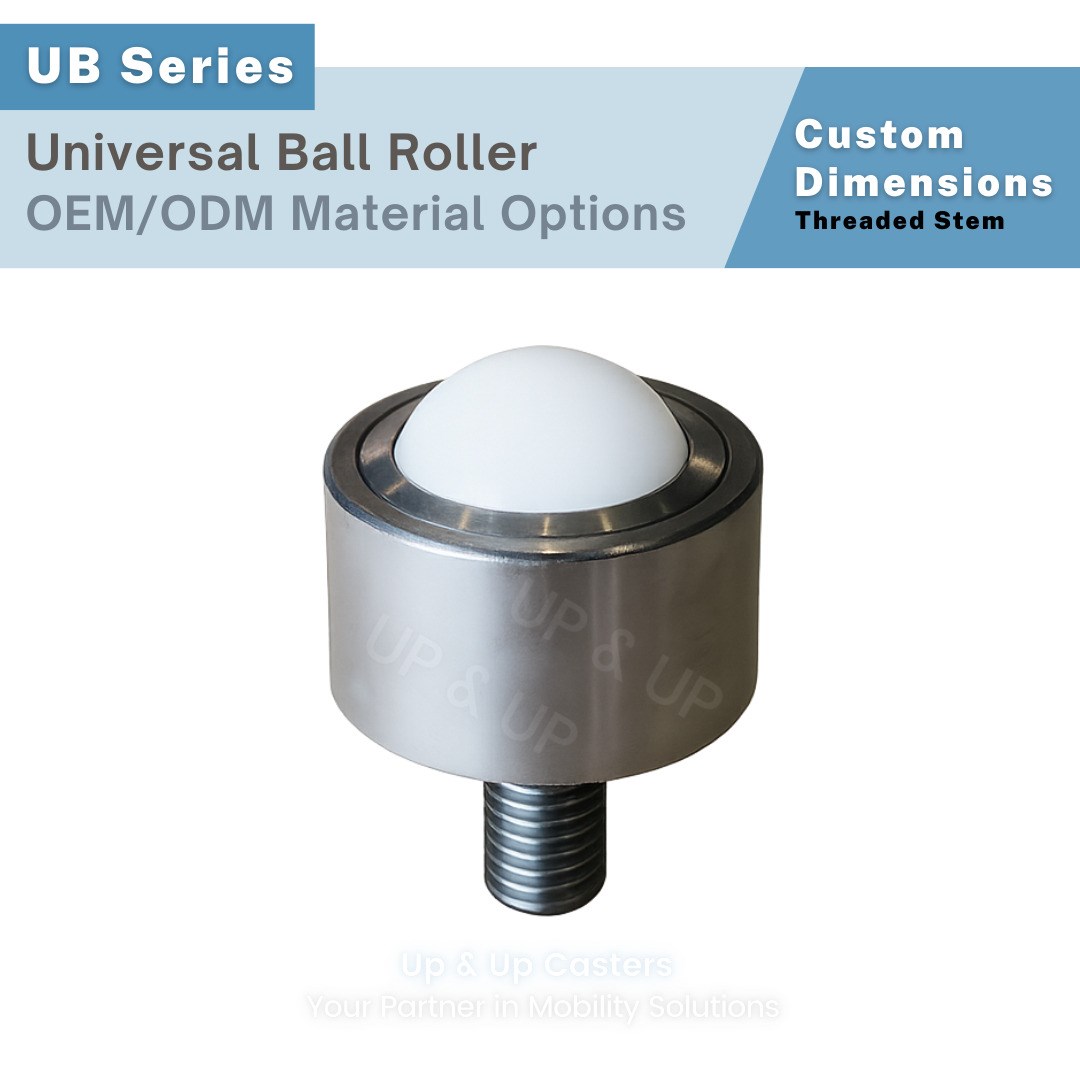

Threaded stem ball transfer unit with metal body and interchangeable ball options UP&UP Casters

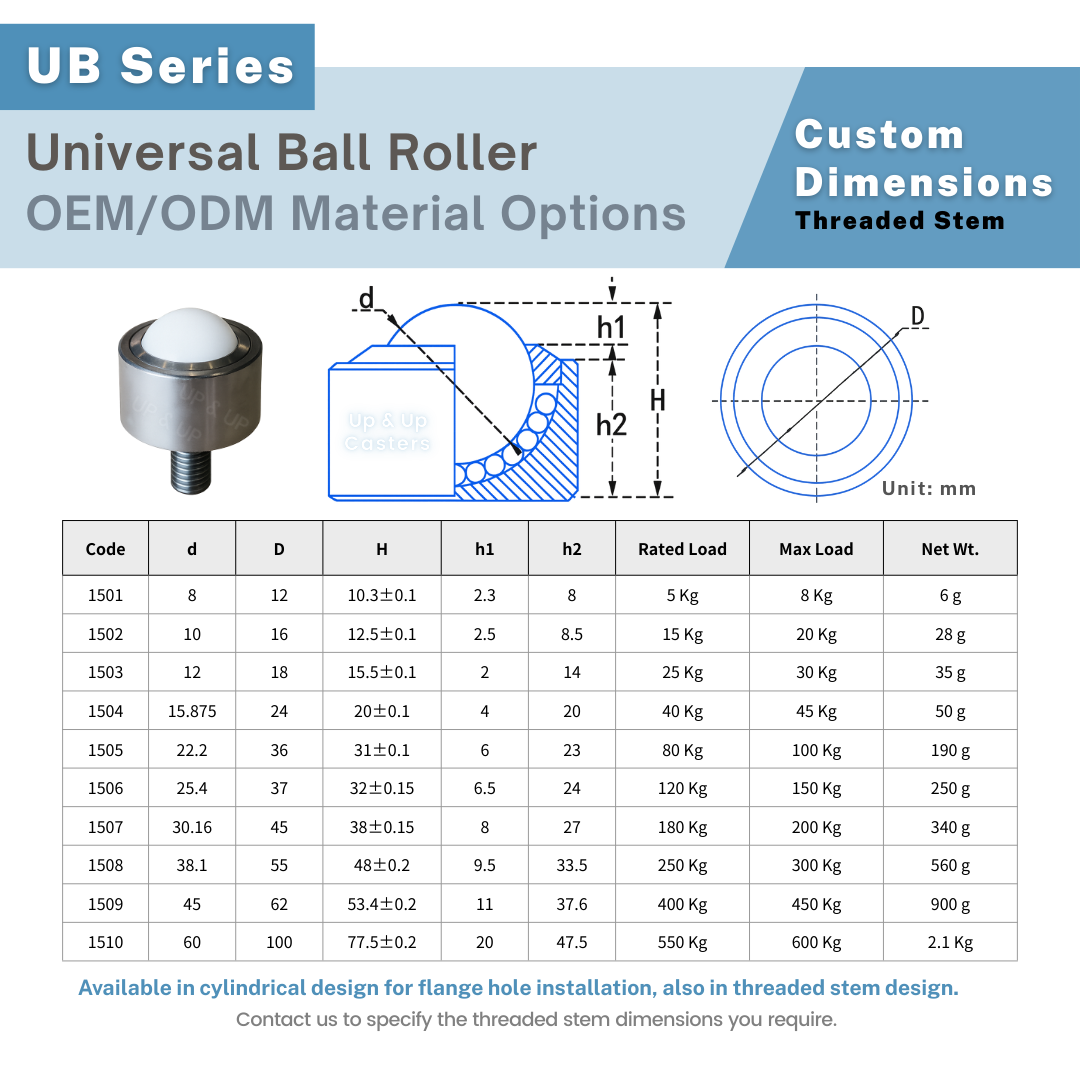

Metal threaded stem universal ball roller specification chart with dimensions, load capacity, and technical diagram. UP & UP Casters
