TPR 3"-5" Medium Duty Medical Caster without Bearing

▶︎ Soft TPR wheels won’t damage flooring – ideal for carpet, tile, and hardwood
▶︎ Quiet, vibration-reducing design with no bearing for basic mobility
▶︎ Lockable swivel available for added safety and stability
▶︎ Mounting types include: top plate swivel, brake, fixed, and threaded stem
▶︎ Certified ROHS & REACH compliant

分享到

TR Series - TPR Medium Duty Caster without Bearing (3”-5”)

TR Series - TPR Medium Duty Caster without Bearing offers quiet and floor-safe mobility for indoor equipment. Made with soft TPR wheels, these casters glide smoothly across wood, tile, and carpet without leaving marks or scratches.
Ideal for furniture and utility carts, this caster is available in multiple mounting types and features a lockable swivel for added control. A cost-effective, noise-free solution where high speed is not required.

Product Features

  • No-Bearing Construction – Simple, cost-efficient, and ultra-quiet
  • Soft TPR Material – Protects floors and absorbs shock
  • 360° Swivel – Smooth turning and maneuverability
  • Optional Brake – Stay-in-place function for safety
  • Multiple Mounting Styles – Plate, bolt-hole, or threaded stem options

Applications

  • Store Fixtures – Smooth and quiet movement for retail shelving and gondolas
  • Furniture & Office Equipment – Ideal for desks, chairs, and cabinets
  • Display Units – Easy repositioning without scratching showroom floors
  • Utility Carts & Platform Dollies – Reliable for light transport across various surfaces
  • Low-Temperature Environments – Suitable for cold storage or refrigerated areas, as the bearing-free design avoids lubrication freezing issues and ensures consistent rolling performance
Specifications
Wheel Material TPR (Thermoplastic Rubber)
Bearing No Bearing
Mounting Types Plate, Threaded Stem, Bolt-Hole
Types Rigid, Swivel, Swivel with Brake
Wheel Diameter 3" (75mm) 4" (100mm) 5" (125mm)
Load Capacity 50 kg 80 kg 100 kg
Wheel Width 26mm 30mm 32mm

💡Other Types of TPR Casters:

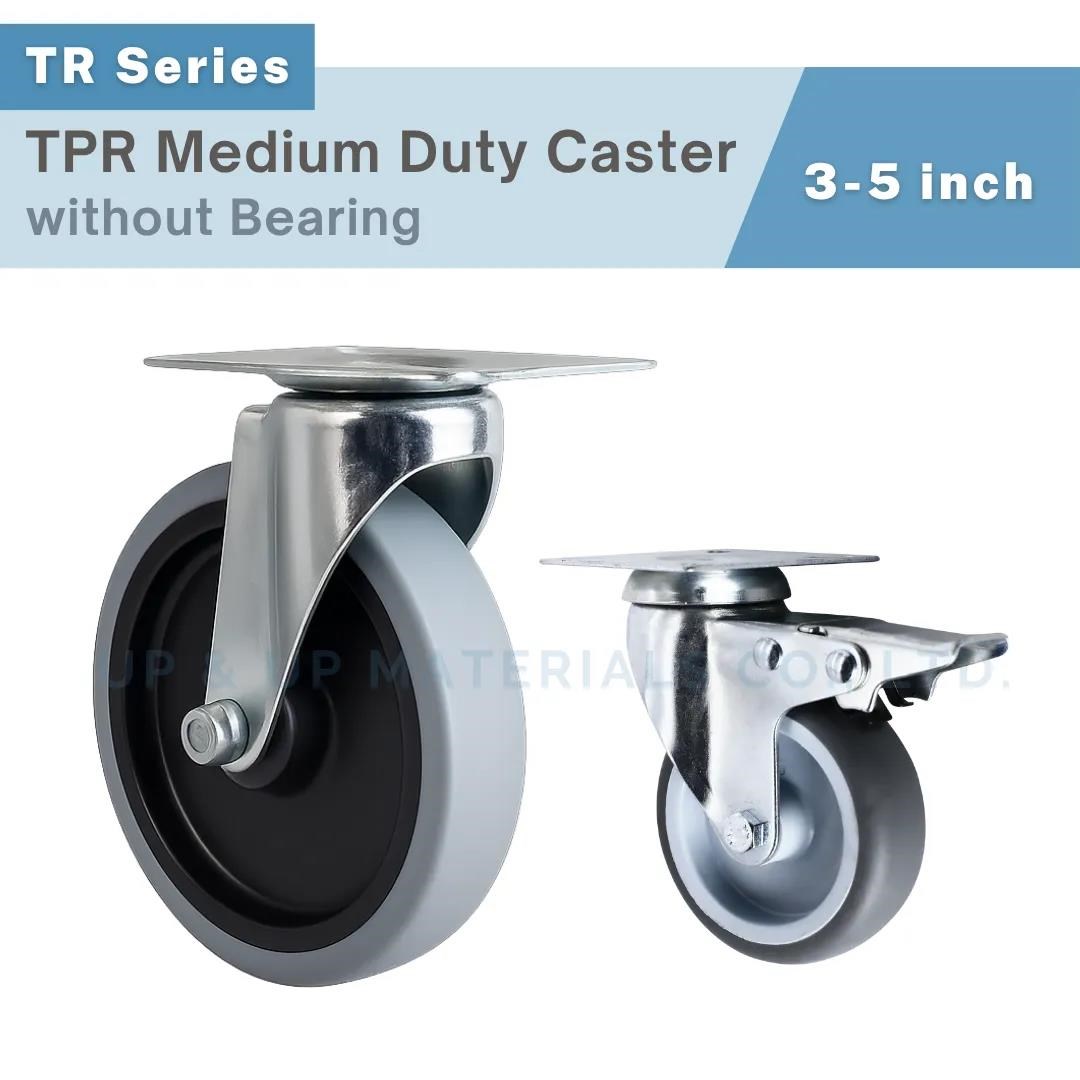

Gray TPR medium duty caster with metal plate mount, 5 inch wheel, swivel type, UP&UP Casters

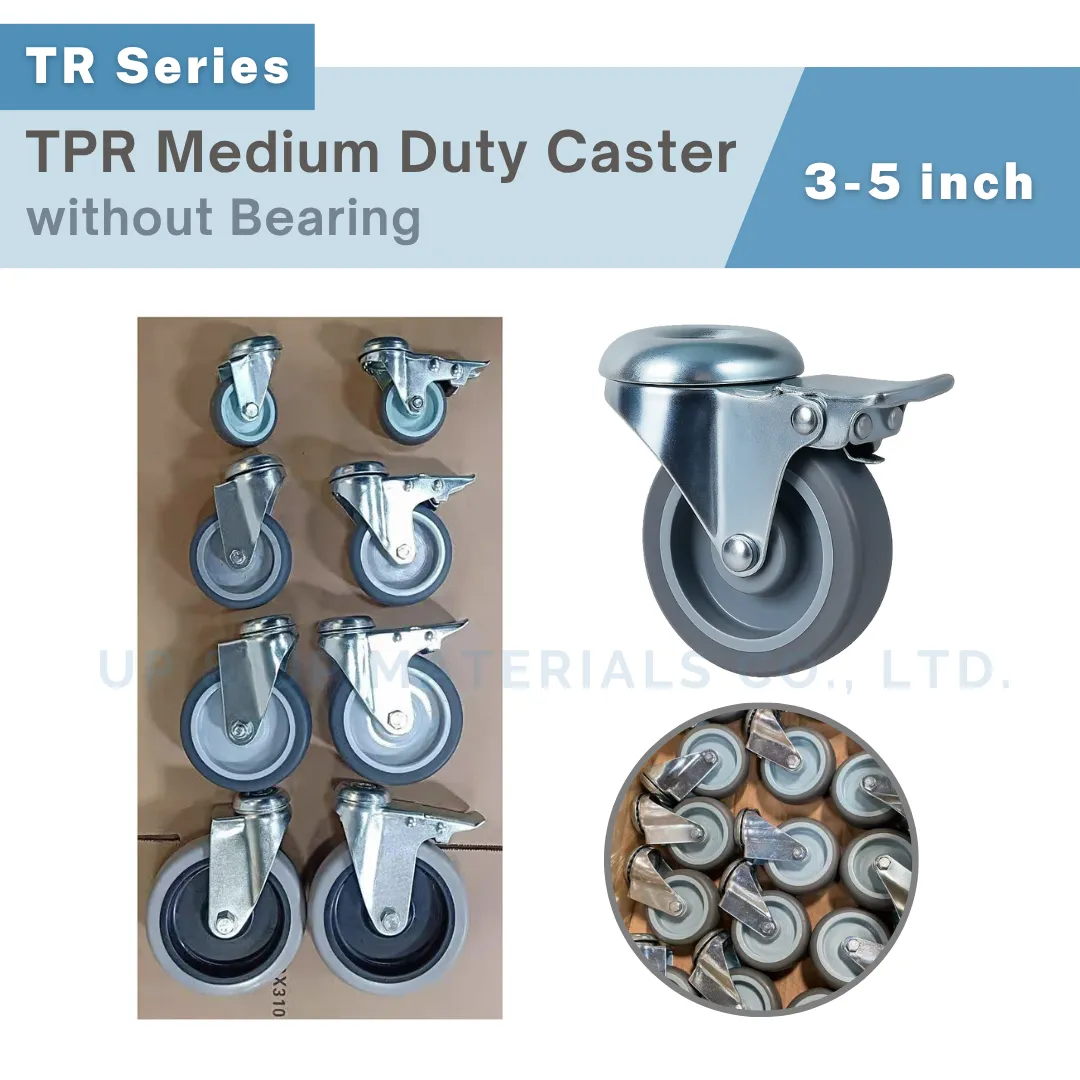

Multiple TPR casters in different mounting types on display board, UP&UP Casters

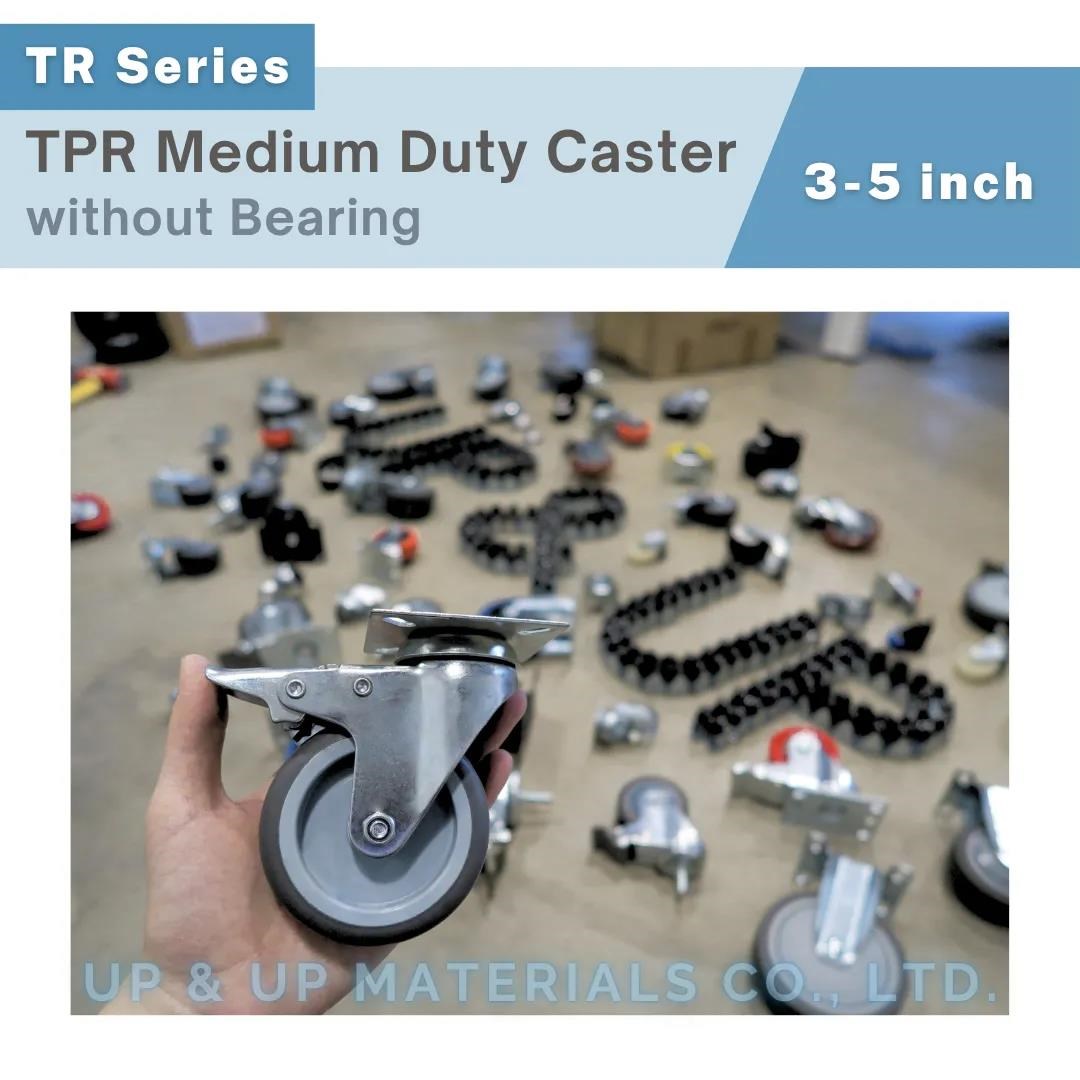

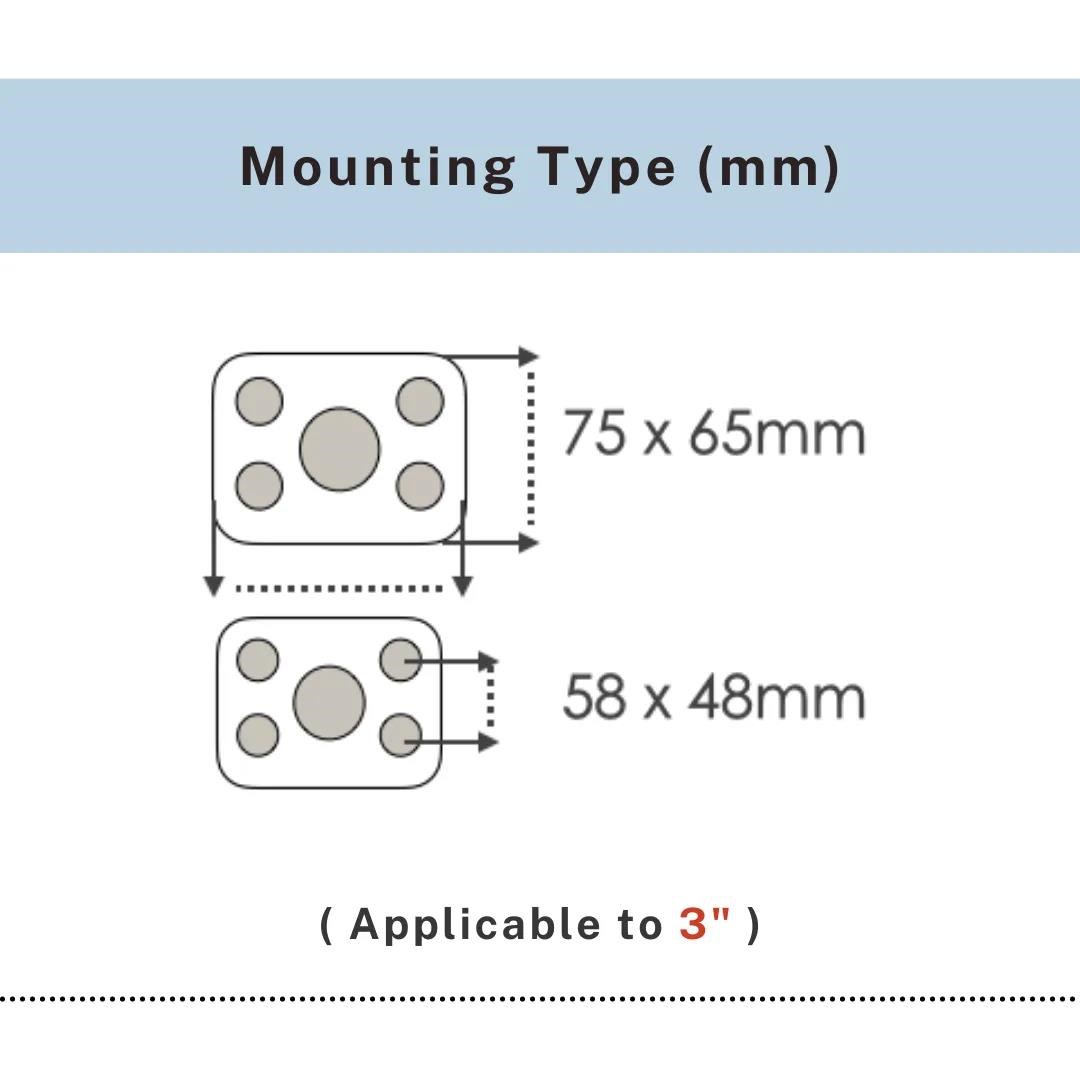

Hand holding gray TPR caster in workshop with other wheels in background, UP&UP CastersMounting plate diagram showing hole spacing 75x65mm and 58x48mm, UP&UP Casters

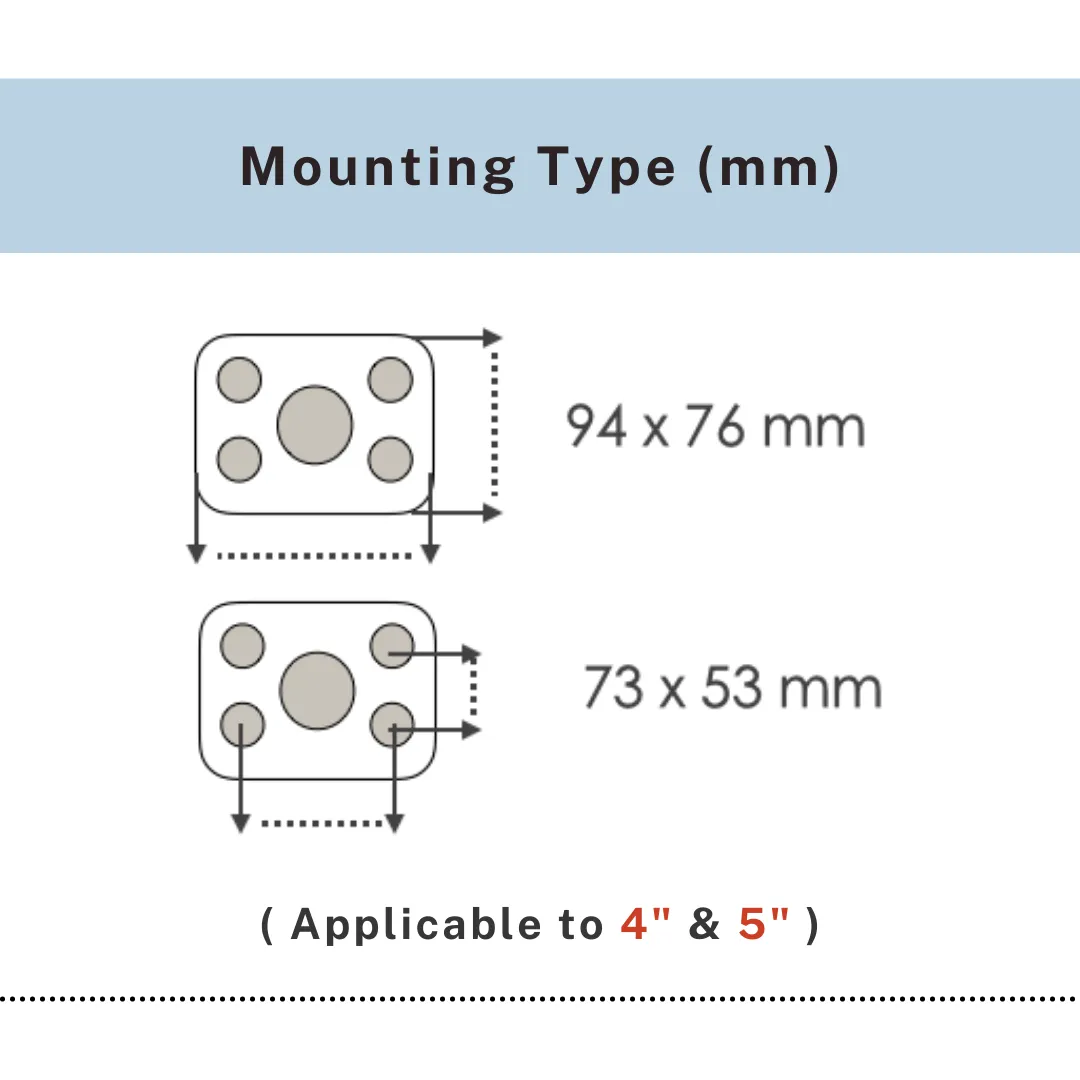

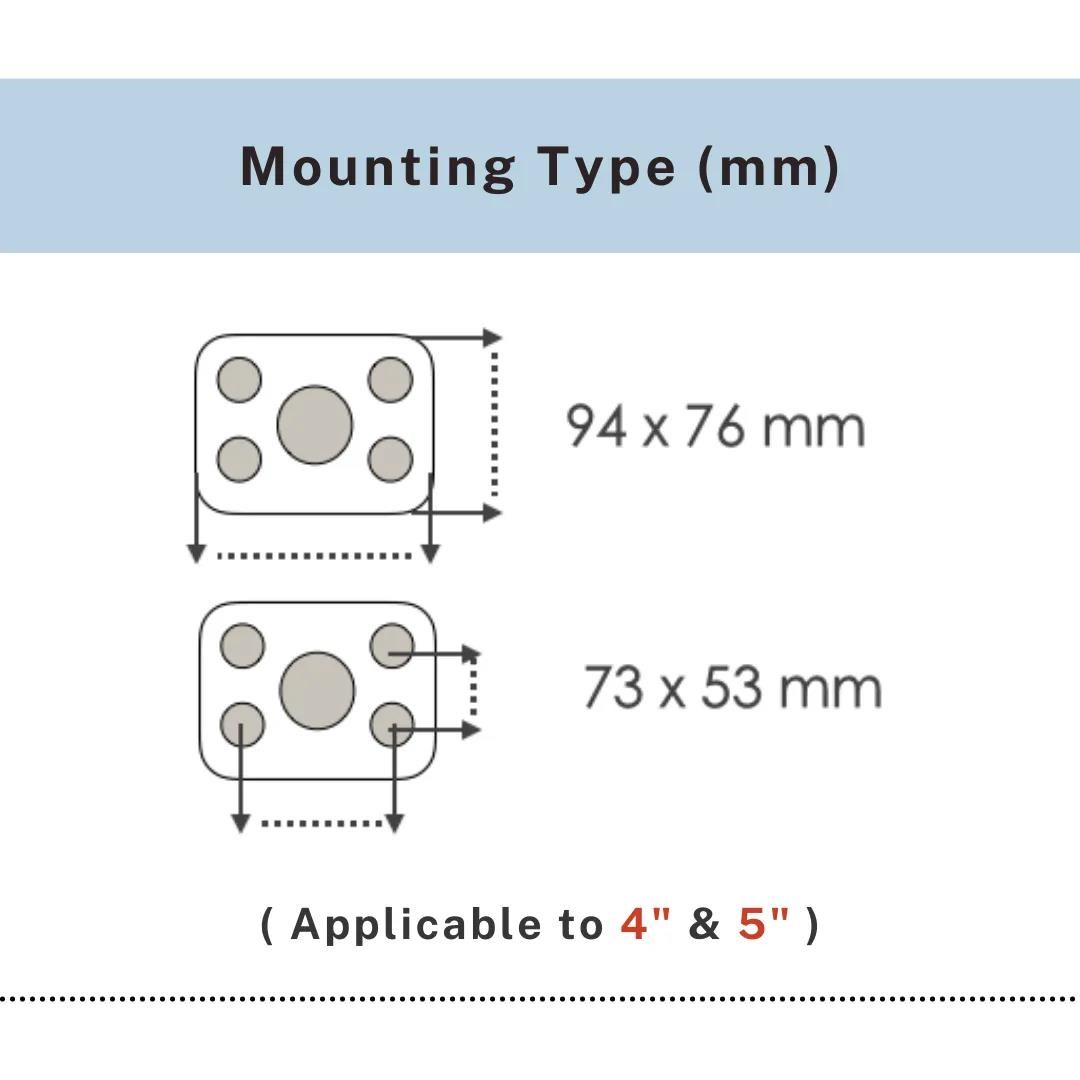

Mounting plate diagram showing hole spacing 94x76mm and 73x53mm, UP&UP Casters

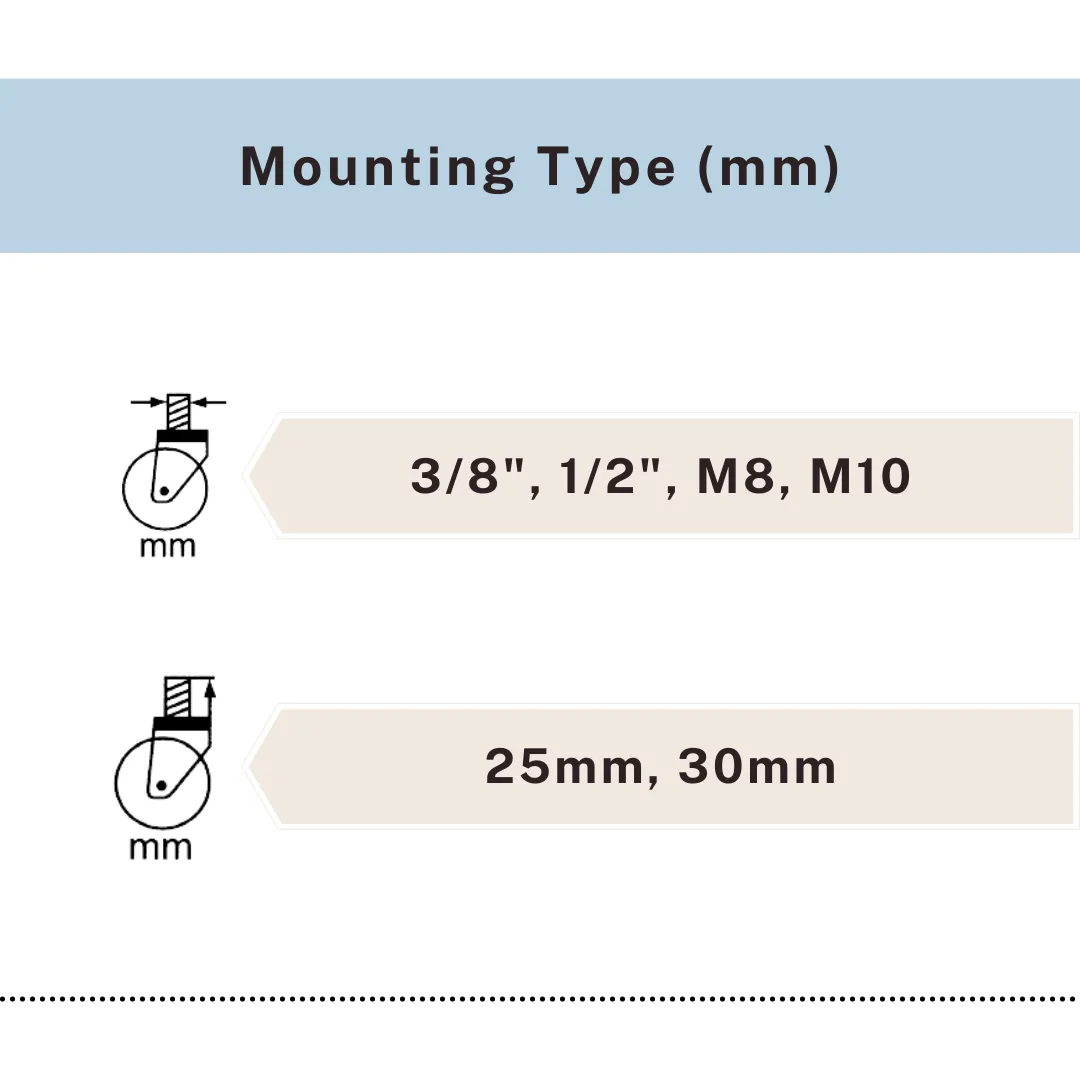

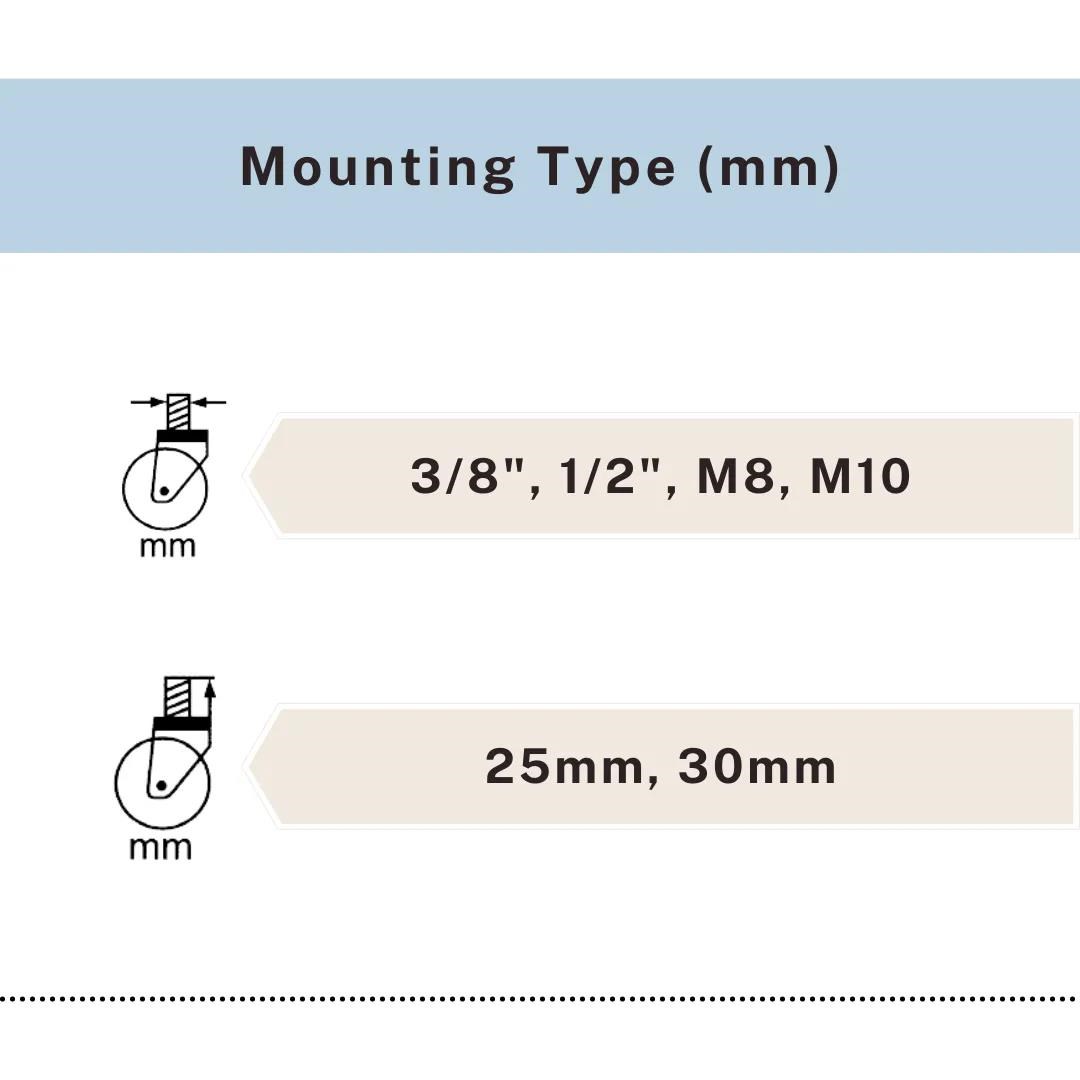

Threaded stem mounting type diagram with sizes 3/8", 1/2", M8, M10, 25mm, 30mm, UP&UP Casters

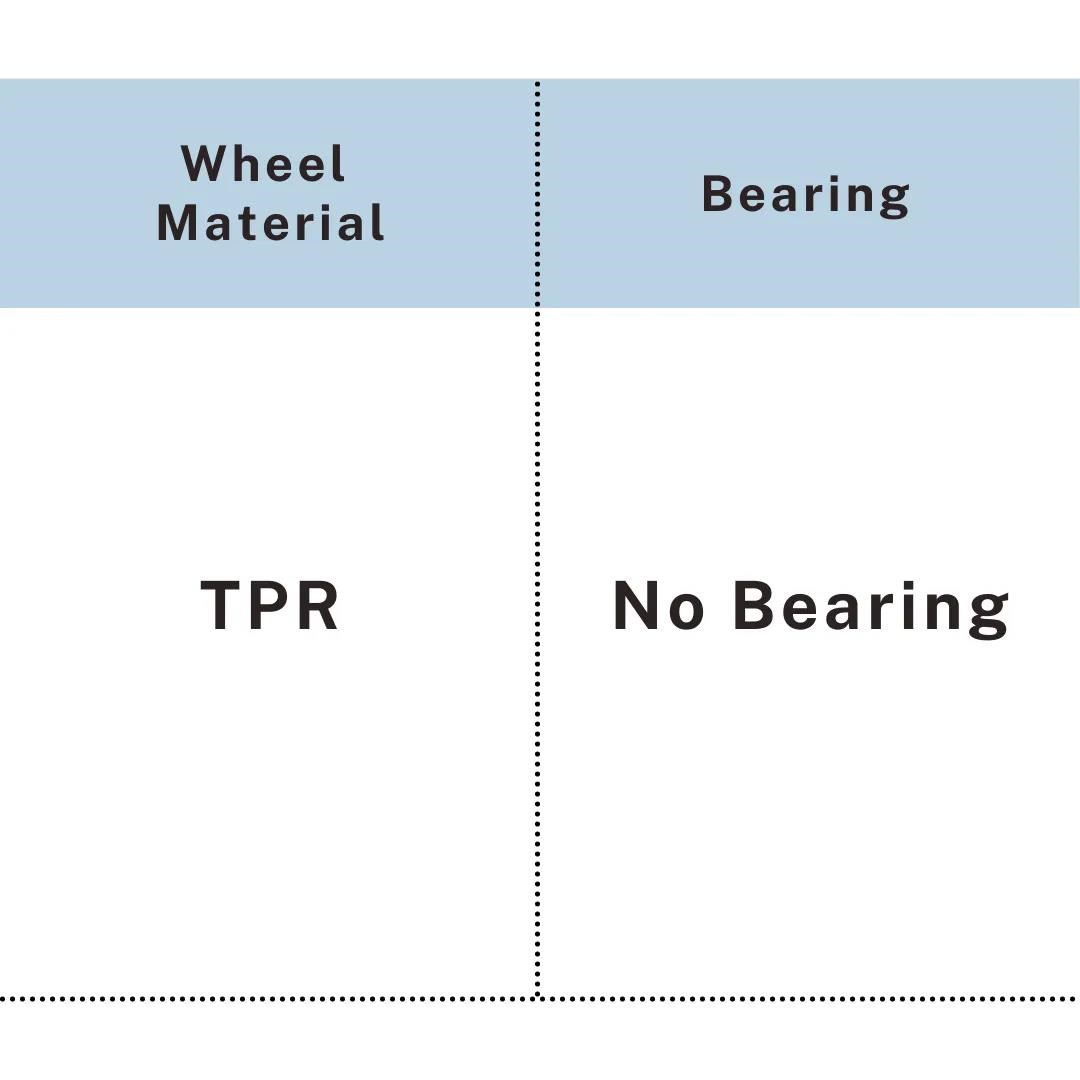

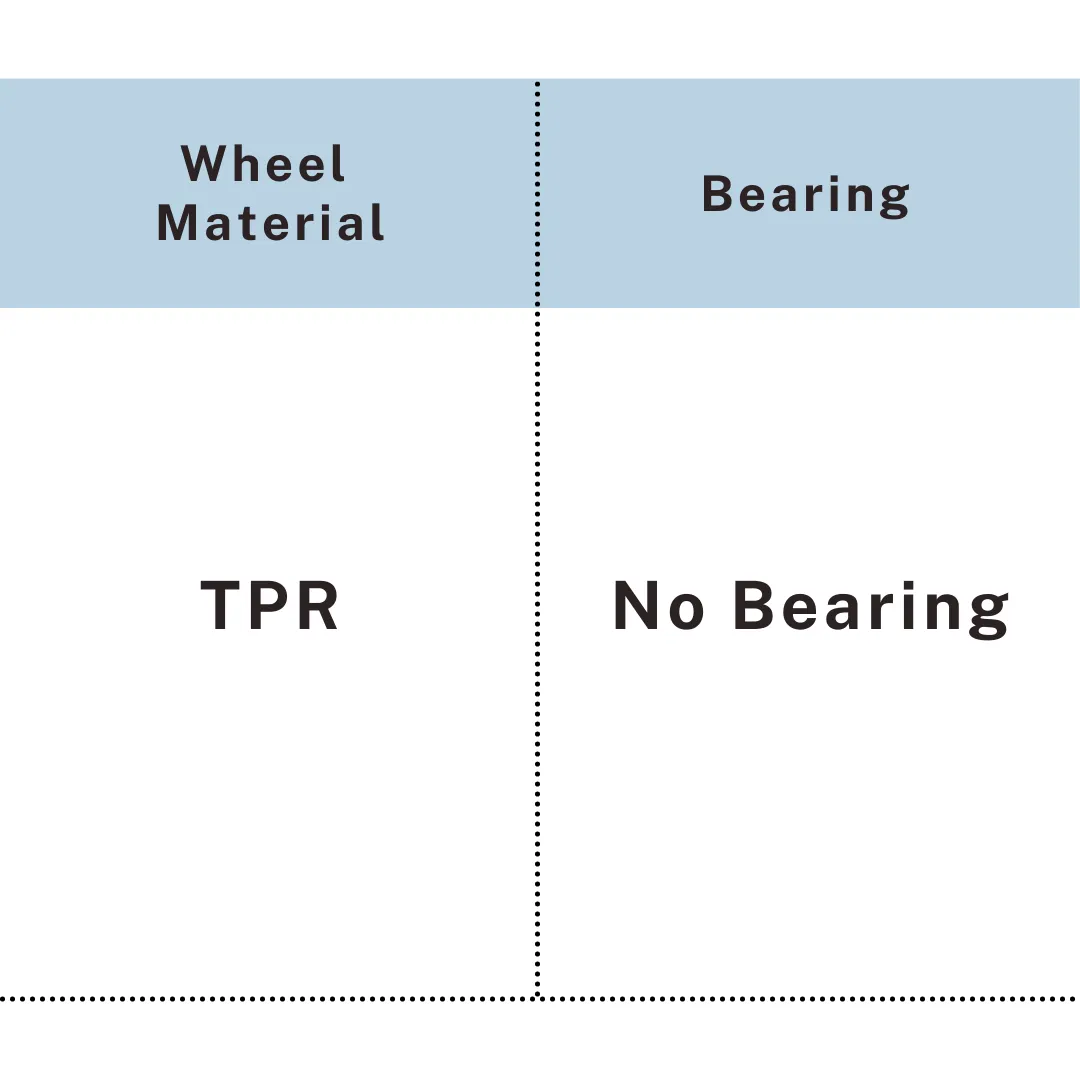

Table showing TPR wheel with no bearing construction, UP&UP Casters

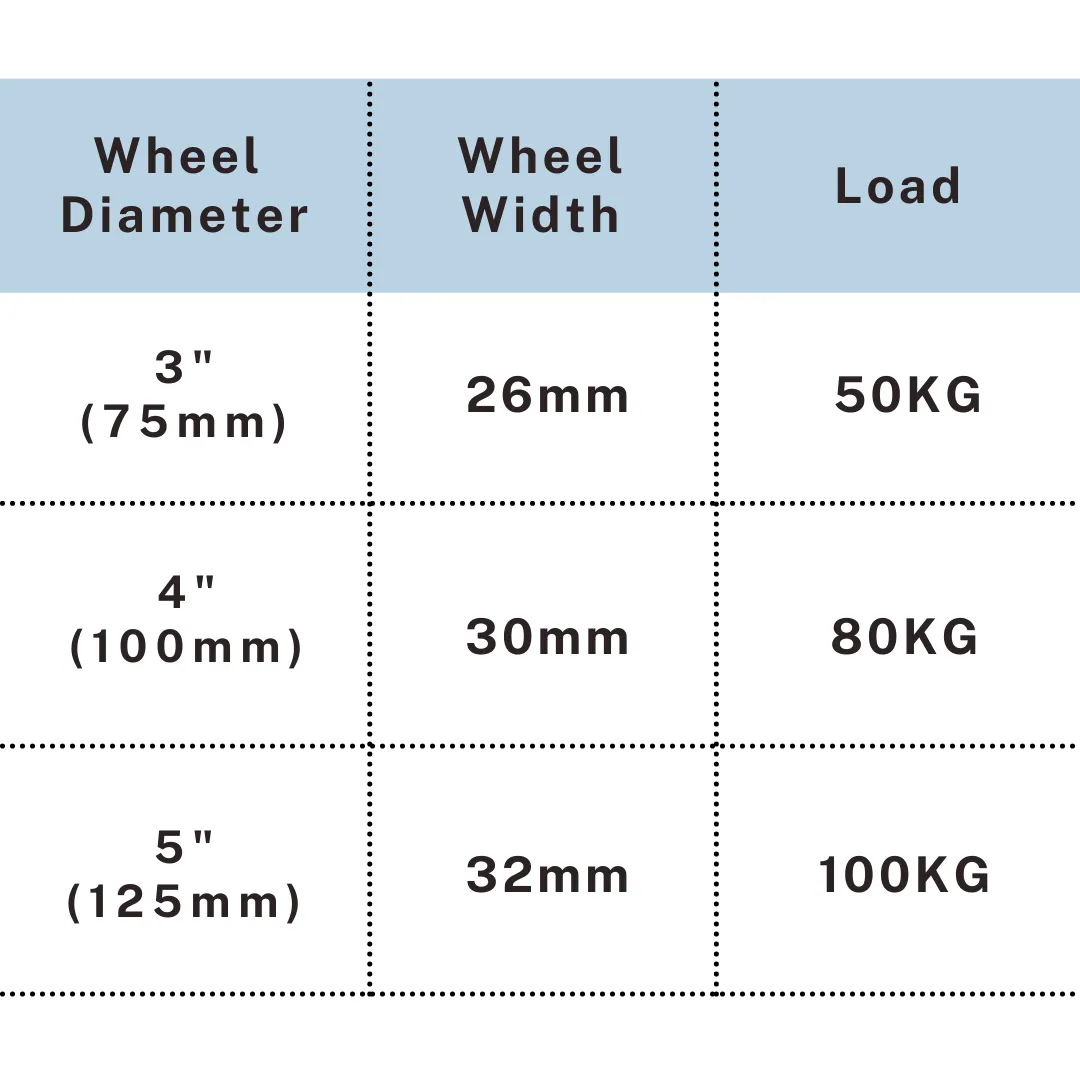

Caster size chart with wheel diameter, width, and load capacity up to 100kg, UP&UP Casters

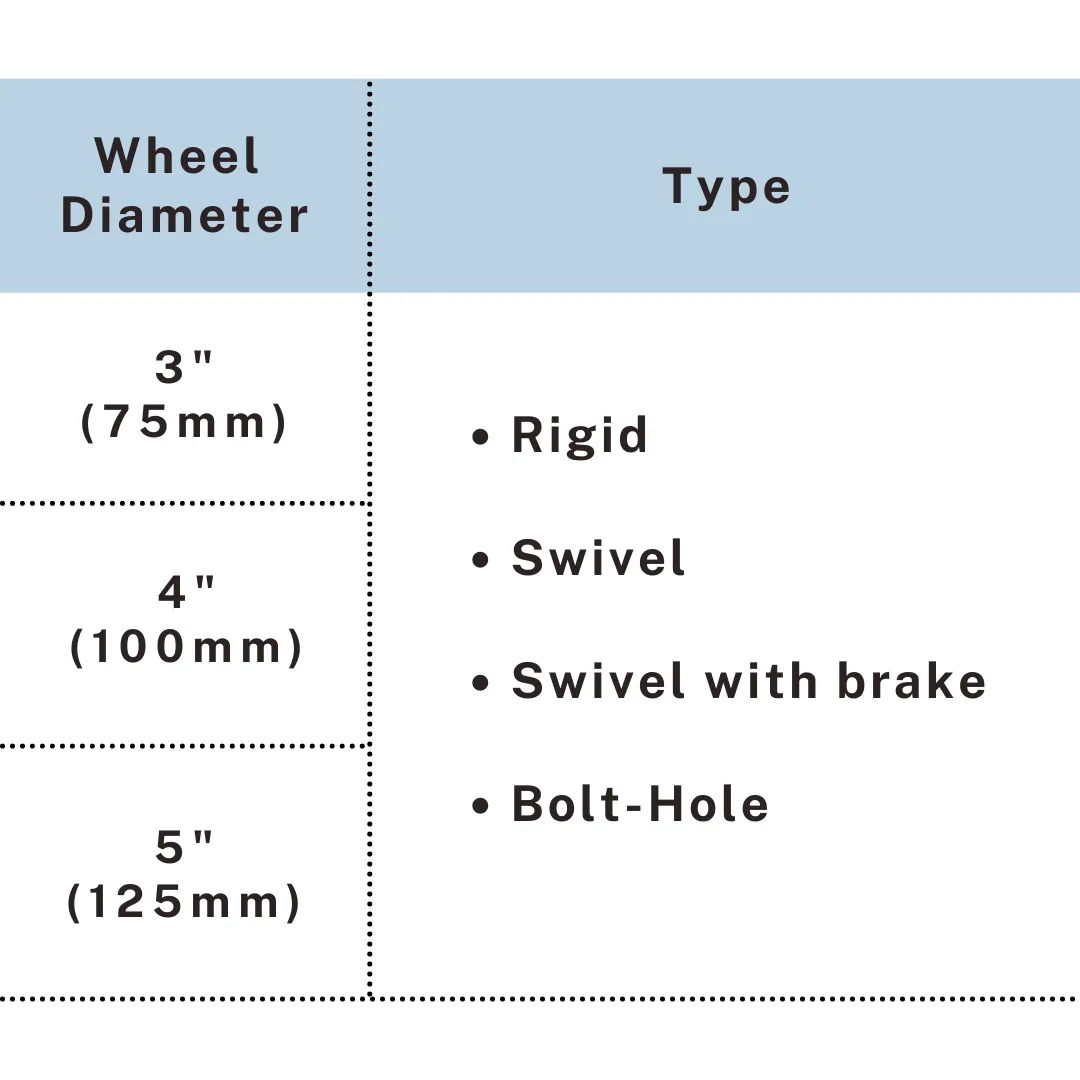

Caster type chart showing rigid, swivel, swivel with brake, and bolt-hole options, UP&UP Casters
