Rubber Heavy Duty Casters 4"-6" with Double Ball Bearings

▶︎ Load capacity: 120KG–200KG depending on wheel size
▶︎ Wheel width: 40mm (4") / 45mm (5" & 6")
▶︎ Quiet and smooth with double ball bearings
▶︎ Durable rubber resists wear, moisture, and chemicals
▶︎ Available in swivel, brake, and fixed mounting types

分享到

PH Series – Rubber Heavy Duty Caster with Double Ball Bearing (4"-6")

The PH Series rubber heavy-duty casters are designed for stable and smooth mobility under demanding loads. With double ball bearings and durable rubber wheels, these casters ensure quiet and efficient movement across various surfaces.
Available in 4", 5", and 6" sizes, they support load capacities ranging from 120KG to 200KG, making them ideal for trolleys, platform carts, and DIY applications.

Product Features

  • Double ball bearing for enhanced rolling smoothness
  • Heavy-duty rubber construction with high resistance to wear and chemicals
  • Load rating up to 200KG (varies by size)
  • Multiple mounting types: swivel, brake, and fixed
  • Low noise performance for industrial and indoor environments

Applications

  • Industrial carts and dollies
  • DIY platforms or utility carts
  • Furniture bases requiring high load capacity
  • Warehouse, garage, or workshop equipment
  • Indoor use on concrete, tile, or resin floors
  • Stainless Steel Platform Trucks - 200-400KG Load Capacity
  • Plastic Hand Truck - 150-500KG Load Capacity
Specifications
Wheel Material Rubber
Bearing Double Ball Bearing
Mounting Types Plate

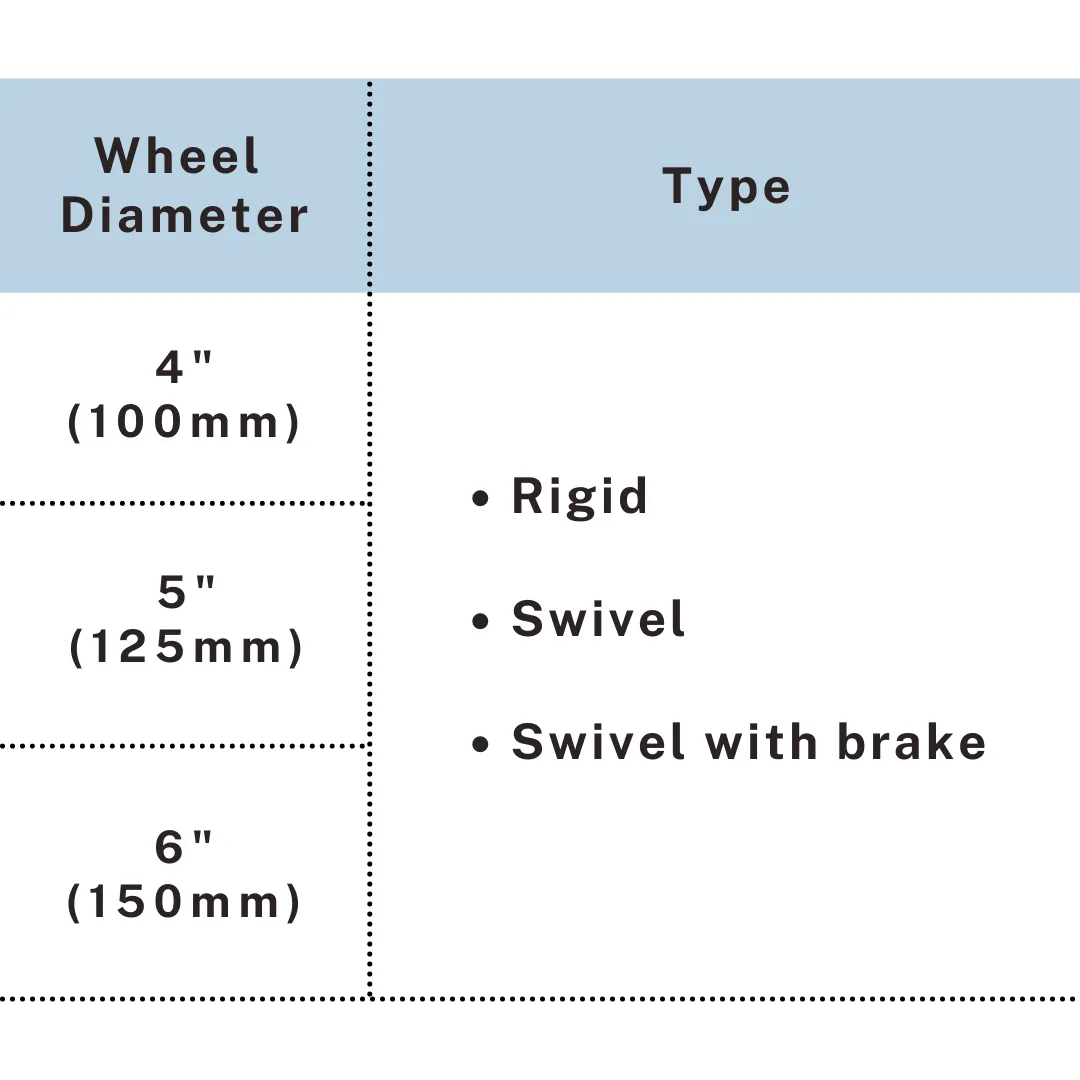

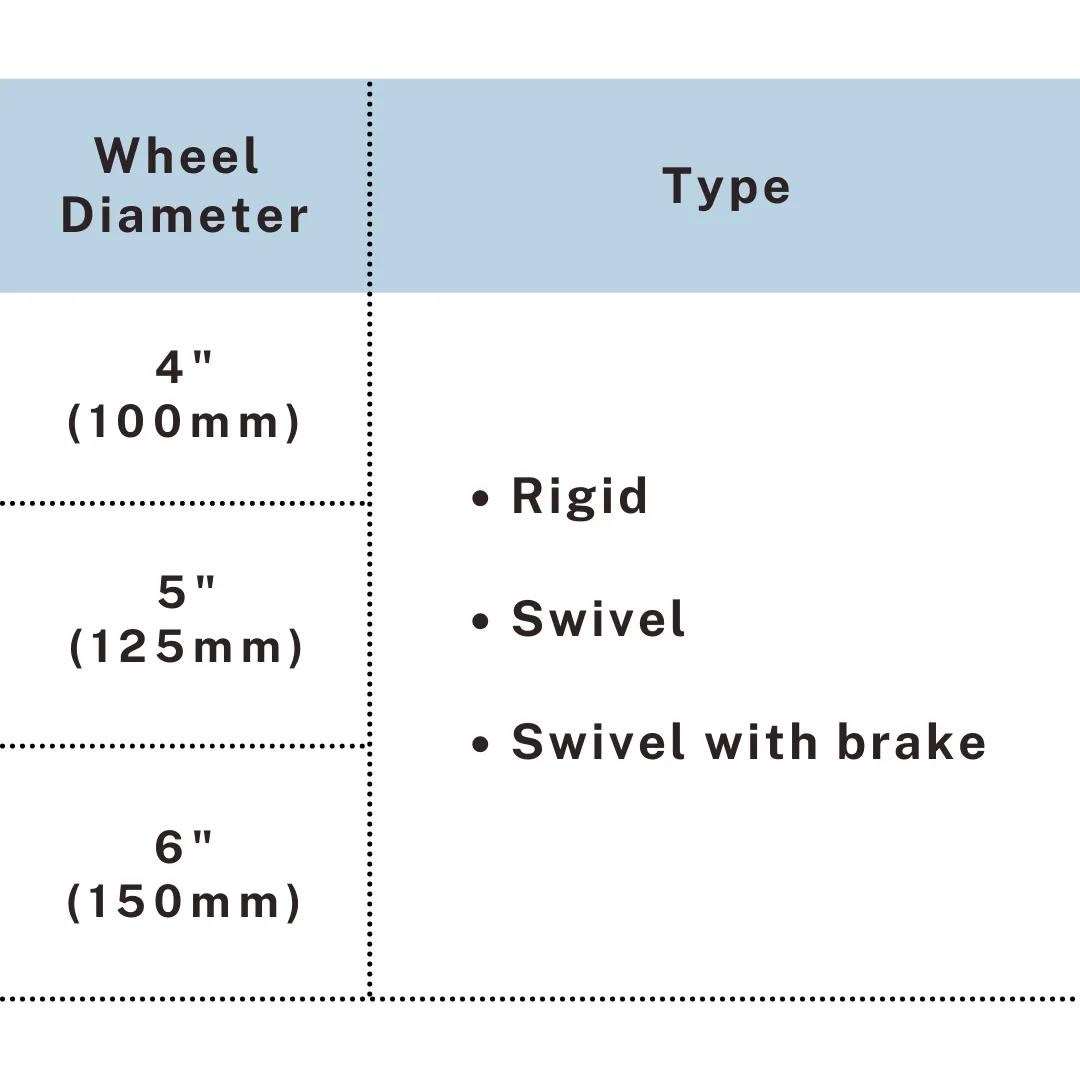

Types Rigid, Swivel, Swivel with Brake
Wheel Diameter 4" (100mm) 5" (125mm) 6" (150mm)
Load Capacity 120 kg 150 kg 200 kg
Wheel Width 40mm 45mm 45mm

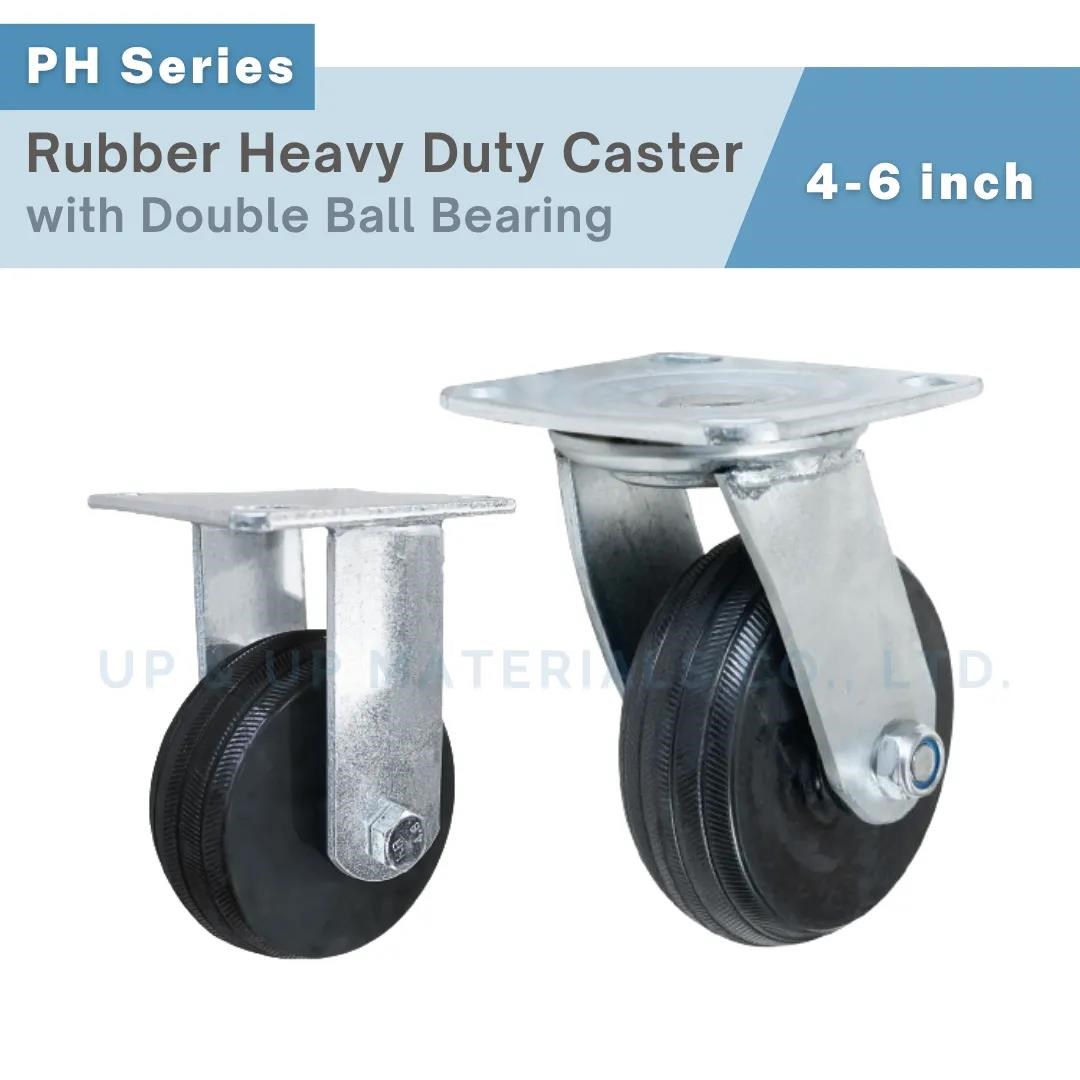

Rubber 4-6 inch heavy duty caster wheels with fixed and swivel mounting, UP&UP Casters

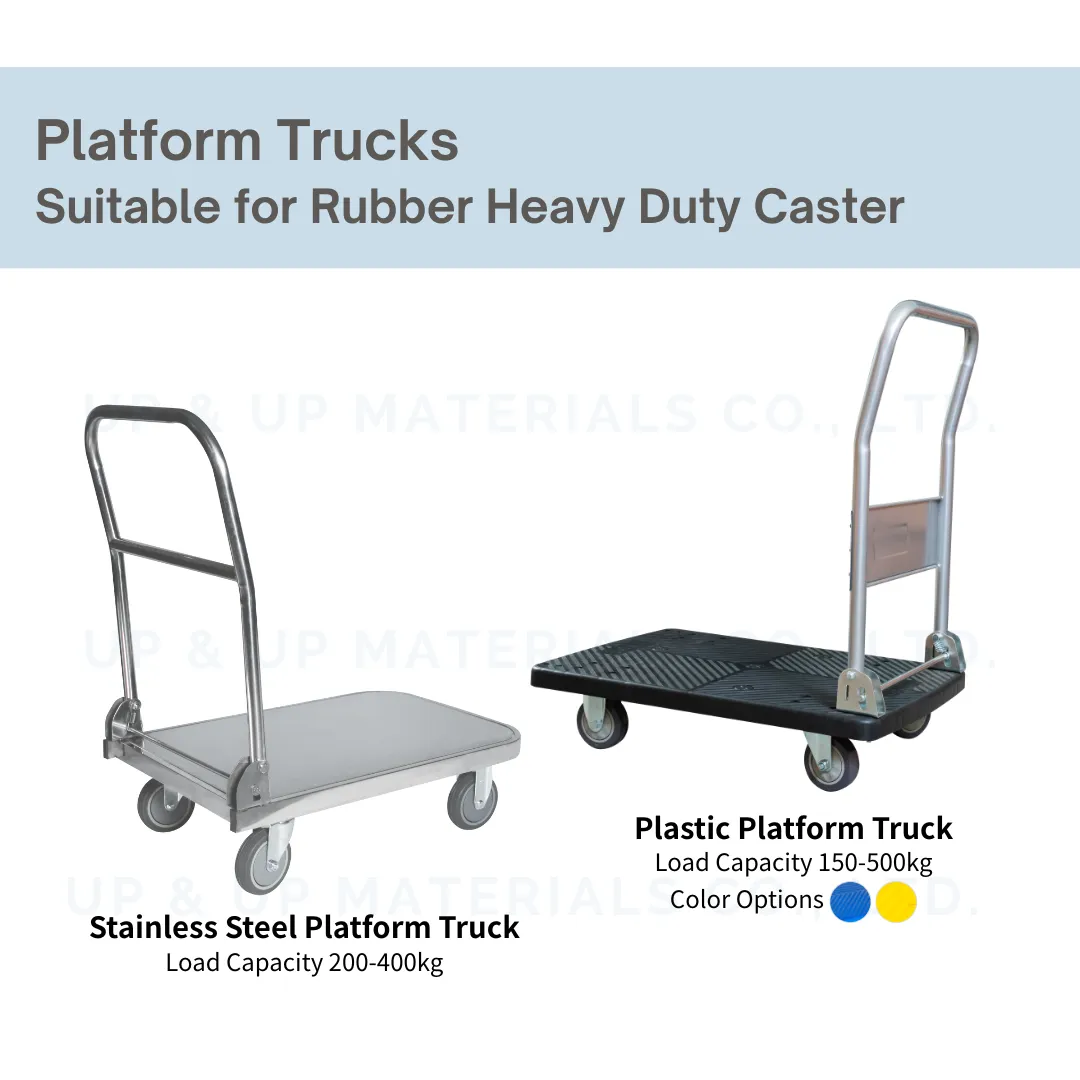

Rubber heavy duty casters used on stainless steel and plastic platform trucks, UP&UP Casters



Mounting plate dimensions 115x100mm and 85x72mm for rubber heavy duty casters, UP&UP Casters

Up & UP【DAB】- Rubber Heavy Duty Caster with 2 Ball Bearings | Load capacity: 120KG–200KG | 4.5.6 inch caster wheel

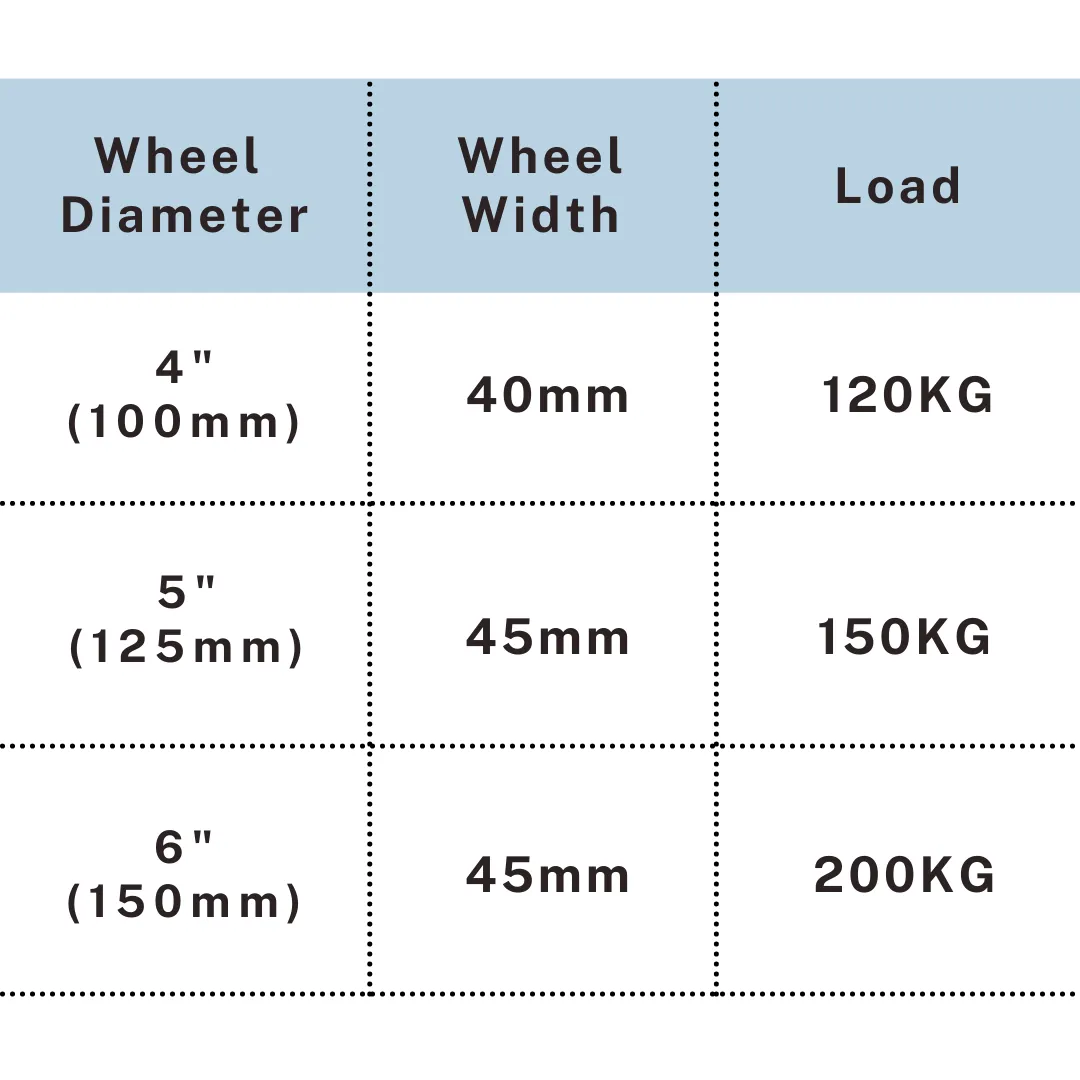

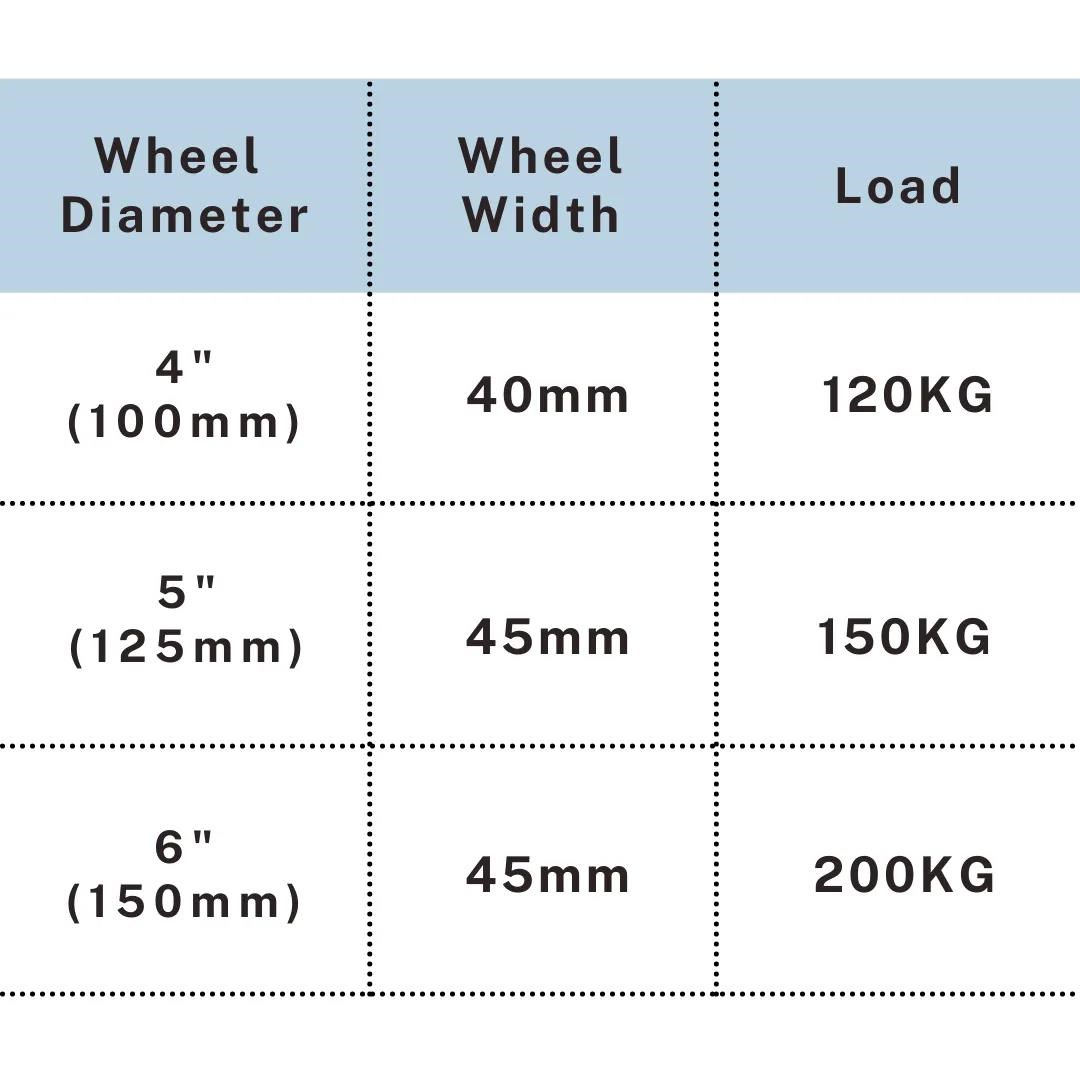

Rubber caster load chart for 4 inch, 5 inch and 6 inch sizes with up to 200KG, UP&UP Casters

Rubber 4-6 inch heavy duty caster wheels with fixed and swivel mounting, UP&UP Casters
